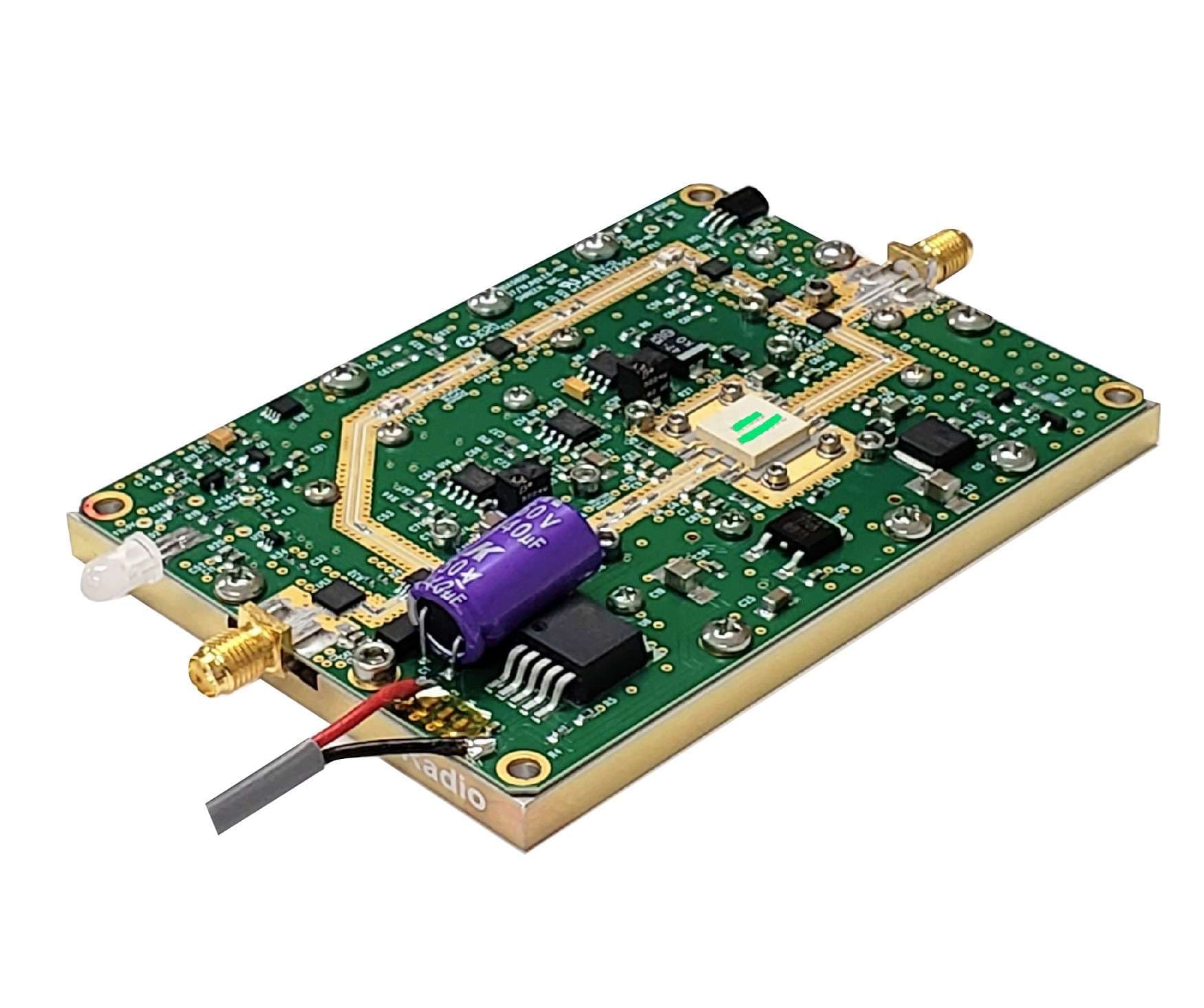

Shireen 2.4~6.0 GHz Bi-directional Amplifier
Estimated shipping time across UK: 1-2 business days via DPD , DHL , Parcel Force, & Fedex
Certified Professional Expertise
Product Overview
Shireen’s wideband bi-directional amplifier delivers reliable RF performance across the 2.4 GHz to 6.0 GHz spectrum, including military frequency bands around 4.4 GHz. Designed for high-speed data radios and OFDM applications, this compact amplifier features ultra-fast switching, rugged CNC-machined aluminum construction, and optimized performance for fixed, mobile, tactical, and OEM deployments.
Key Features
Wideband Coverage
Works from 2.4GHz through 6GHz, including Military band of 4.4GHz
High Speed Switching
High speed switch circuit with < 1 μs switching to allow high speed data radios
Peak Power Output
41 dBm peak transmit power for strong signal amplification
OFDM Compatible
For OFDM radios, the peak power goes down for better EVM
Gain Flexibility
Standard 16 dB gain with optional 28 dB gain configuration available
Wide Temperature Operation
Operates from -40°C to +70°C for demanding environments
Outdoor Ready
Outdoor CNC machined aluminum enclosure for durability
Compact Form Factor
Small footprint at 4.6 x 2.8 inches, only 0.8" high
Lightweight
Weighs only 6.15 Oz for portable and airborne applications
Domestic Manufacturing
Entirely made in USA
Technical Data
| Parameter | Rating / Detail |
|---|---|
| Product Name | 2.4~6.0 GHz Bi-directional Amplifier |
| Version | OEM Version |
| Operating Range | 2400-6000 MHz |
| Operating Mode | TDD, Time Division duplex |
| Transmit Peak Power | 41 dBm +/- 1 |
| Transmit Gain | 16 dB +/- 2 (28 dB optional) |
| Transmit Input Power | -2 dBm min, 20 dBm max |
| Receive Gain | 20-22 dB |
| T/R Switching Speed | < 1 μs |
| Noise Figure | ≤ 5 dB |
| LED Indicators | Red for Receive (Default mode), Green for Transmit |
| Power Consumption | 130 mA Rx, 2.0 A Tx @ 28 VDC |
| Operating Temp | -40 °C to + 70 °C |
| Enclosure | Outdoor CNC machined Al enclosure |
| Dimensions | 4.6 x 2.8 inch, 0.8" high |
| Weight | 6.15 Oz |
| Country of Manufacture | USA |
