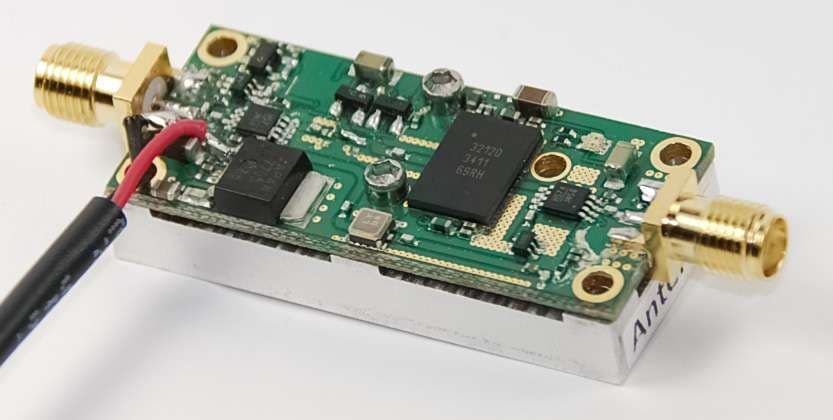

Shireen 900MHz 2 Watt Amplifier OEM Version
Estimated shipping time across UK: 1-2 business days via DPD , DHL , Parcel Force, & Fedex
Certified Professional Expertise
Product Overview
Shireen’s 900MHz OEM amplifier module delivers compact, high-efficiency RF amplification for portable and embedded ISM band applications. Providing 2 Watt linear output with configurable transmit gain up to 30dB, this lightweight amplifier is optimized for telemetry, robotics, industrial controls, model aircraft, and wireless communication systems. Its compact PCB design, fast switching capabilities, and flexible power options make it ideal for OEM integration and portable RF deployments.
Key Features
Linear & Saturated Power
2 Watt linear peak (P1dB) and 4 Watt saturated peak output power
Gain Flexibility
20 dB Tx gain standard, up to 30dB available upon request
Rx Gain
18 dB receive gain for improved sensitivity
Ultra-Compact PCB
Tiny 0.75" x 1.75" PCB footprint for space-constrained integrations
High Speed Switching
Fast receive/transmit switching time ideal for TDD technologies (FHSS, DSSS, OFDM etc.)
Low Power Consumption
Highly efficient amplifier consuming only 45mA during Rx mode
Flexible Power Supply
Can be powered via regulated 5V DC or unregulated 6~14V DC
Lightweight Design
Weighs only 0.1 Oz for portable and airborne applications
Range Boosting
Ideal range boosting option for widely available TDD radios
Target Applications
Perfect for model aircraft, telemetry, robotics, and industrial controls
Wide Temperature Range
Operates from -40°C to +70°C for demanding environments
Status Indication
Status LED for Tx and Rx
Domestic Manufacturing
Made in USA
Technical Data
| Parameter | Rating / Detail |
|---|---|
| Product Name | 900MHz, 2 Watt Amplifier - OEM Version |
| Operating Range | 902 - 928 MHz |
| Operating Mode | TDD, Time Division duplex |
| Transmit Power | 2W (33 dBm) - P1dB linear peak, 4 Watt saturated peak |
| Transmit Gain | 20 dB (up to 30dB optional upon request) |
| Transmit Input Power | 0 dB min +/- 1 (trigger point), 15 dBm max |
| Receive Gain | 18 dB |
| Noise Figure | 3.5 dB |
| LED Indicators | Red for Receive, Green for Transmit |
| Power Consumption @ 6V DC | Rx: 45mA, Tx: 800mA, average less than 300mA |
| Operating Temp | -40 °C to + 70 °C |
| Dimensions | 0.75" x 1.75" x 0.15" (H) |
| RF Connectors | SMA females |
| DC Input | Via DC cable directly soldered on the unit |
| Weight | 0.1 Oz |
| Power Supply Options | Regulated 5V DC or unregulated 6~14V DC |
