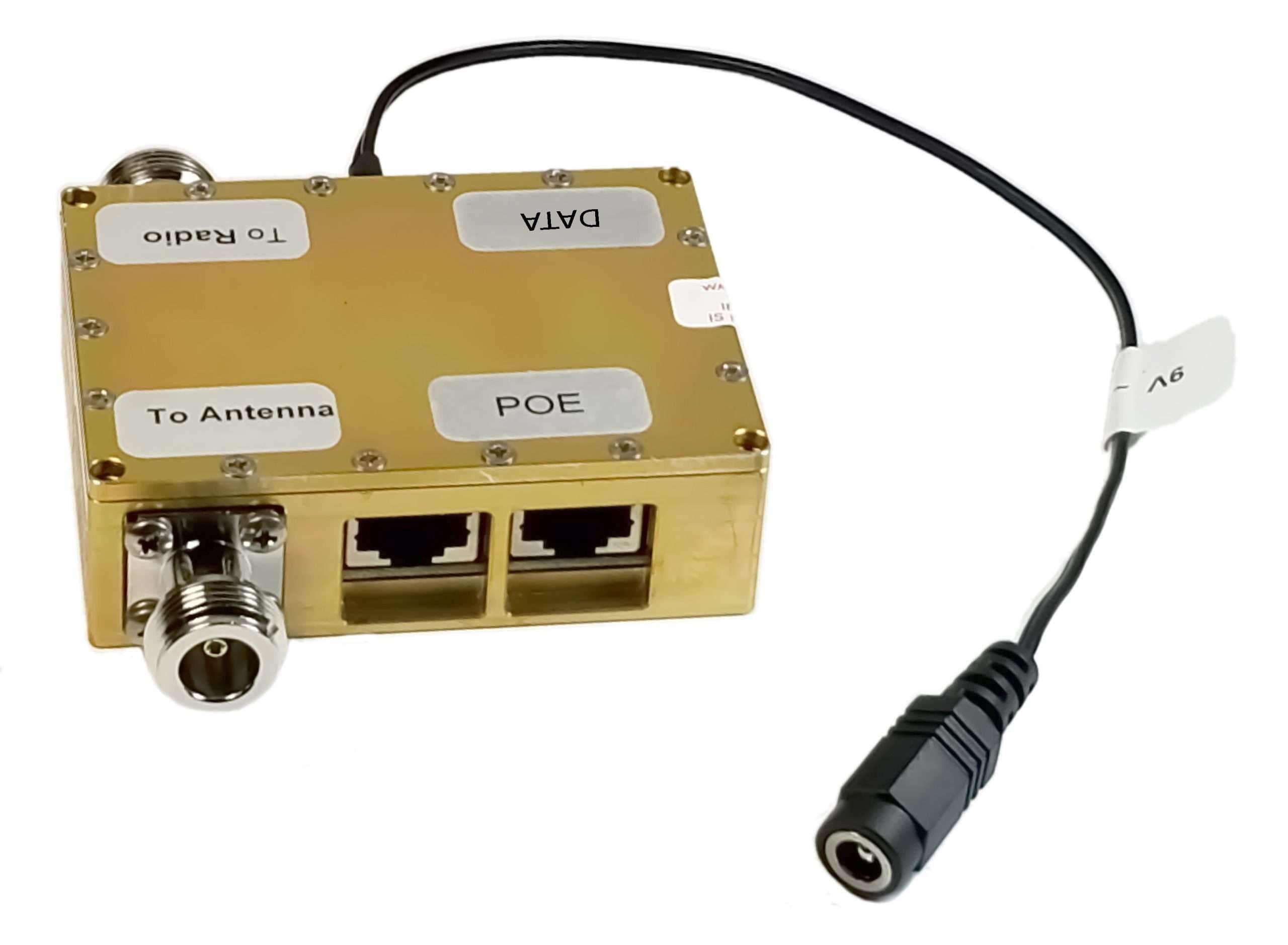

Shireen 5.8GHz Variable Voltage Regulated Amplifier 2 Watt Output
Estimated shipping time across UK: 1-2 business days via DPD , DHL , Parcel Force, & Fedex
Certified Professional Expertise
Product Overview
Shireen’s 5.8GHz variable voltage regulated amplifier delivers reliable RF amplification for high-frequency ISM band deployments. Designed for wide voltage operation from 9V to 60V DC, this amplifier combines integrated low noise amplification, dual POE support, and compact rugged construction for wireless networking, industrial, and specialized communication systems.
Key Features
Amplification
Bi-directional RF amplifier family providing 1 to 2 Watt output power depending on operating conditions
Frequency Options
Available for 900MHz, 2.4GHz, and 5.8GHz ISM frequency bands
Wide Input Voltage
Operates from unregulated DC power sources ranging from 9V to 60V DC
Low Noise Amplifier
Integrated LNA with 18 to 20 dB receive gain improves receiver sensitivity
Receive Filtering
Built-in band-pass filtering helps reduce out-of-band interference
Fast Switching
High-speed transmit/receive switching compatible with modern wireless protocols
POE Support
Dual Power over Ethernet ports support POE deployments
Efficiency
Designed for low power consumption and high RF efficiency
Enclosure
Rugged CNC machined aluminum housing
Industrial Grade
Wide operating temperature range from -40°C to +70°C
Warranty
Includes 2-year manufacturer warranty
Availability
Offered to military, overseas, and authorized customers
Technical Data
| Parameter | Rating / Detail |
|---|---|
| Product Name | 5.8GHz Variable Voltage Regulated Amplifier |
| Item Number | 58-500 |
| Operating Range | 4900 - 6000 MHz |
| Operating Mode | TDD |
| Peak Transmit Power | 33 dBm |
| Transmit Gain | 20 dB |
| Transmit Input Power | 3 dBm min, 15 dBm max |
| Receive Gain | 20 dB |
| Noise Figure | < 3.5 dB |
| Power Consumption Rx @ 9VDC | 35 mA |
| Power Consumption Tx @ 9VDC | 800 mA |
| Operating Temperature | -40°C to +70°C |
| Dimensions | 3.1 x 2.3 x 0.95 inches |
| Enclosure | CNC Machined Aluminum |
| Connectors | Type N Female |
| Weight | 7.2 oz |
