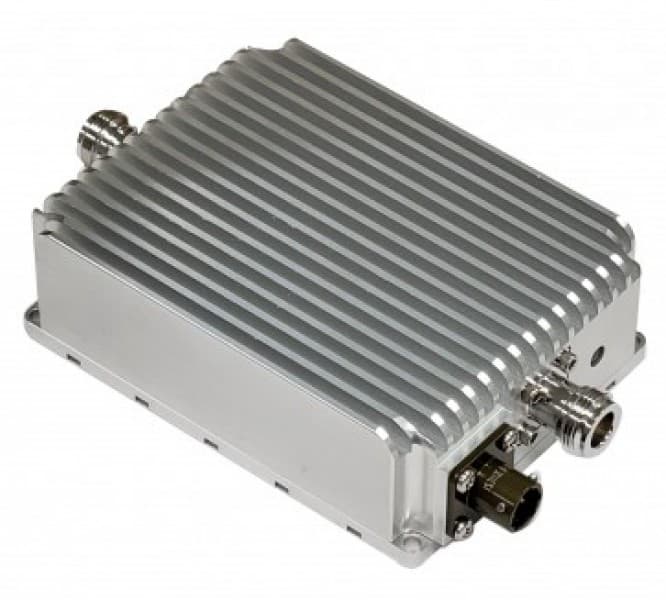

Shireen 2.4~6.0 GHz Bi-directional Amplifier Indoor Version with direct power feed
Official Warranty Included
Unit Price
1
Description
A high-performance wideband device designed for multi-band applications. Preferred by militaries for advanced feature and precision engineering. Ensures optimal signal amplification for high-speed data radios.
Key Features
Wideband Coverage
Operates seamlessly across the 2.4 GHz to 6.0 GHz range including critical bands for military and public safety communications.
High-Speed Switching
The integrated high-speed switch circuit ensures compatibility with all modern data radios requiring very rapid Tx/Rx transitions.
Indoor and OEM Flexibility
Compact design suitable for indoor setups and available in PCB form for easy integration into custom OEM systems.
Technical Data
| Parameter | Rating / Detail |
|---|---|
| Operating Range | 2400 - 6000 MHz |
| Operating Mode | TDD, Time Division Duplex |
| Transmit Peak Power | 41dBm +/- 1 |
| Transmit Gain | 16 dB +/- 2 (28dB optional) |
| Transmit Input Power | 0dBm min 20 dBm max |
| Receive Gain | 20~22 dB |
| T/R Switching Speed | < 1 µs |
| Noise Figure | ≤ 5 dB |
| LED Indicators | Red for Receive (Default Mode), Green for Transmit |
| Power Consumption @ 28V DC | 130mA Rx, 2.0A Tx |
| Operating Temp | -40 °C to + 70 °C |
| DC Power | 28 V DC |
| Dimensions | 5.7”x3.3” |
