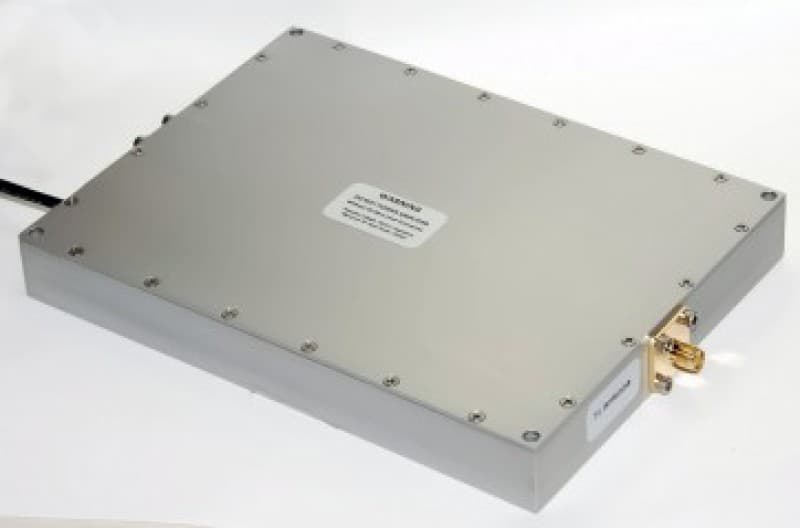

Shireen 1.3GHz 20Watt Amplifier
Official Warranty Included
Unit Price
1
Description
State of the art RF amplifier for 1.3 GHz frequency TDD radios. Its linear design and support for OFDM modulation makes it a perfect choice for secure and uninterrupted communication in critical applications.
Key Features
Linear Amplification
Maintains excellent signal fidelity to ensure clear and accurate transmissions.
OFDM Modulation Compatibility
Optimized for modern communication protocols with reduced interference.
Efficient Thermal Management
Requires a heat sink for cooling but eliminates the need for a fan.
Technical Data
| Parameter | Rating / Detail |
|---|---|
| Operating Range | 1300 ‐ 1395 MHz |
| Operating Mode | TDD, Time Division Duplex |
| Transmit Power | 43dBm, 20 Watt |
| Transmit Gain | 20 dB |
| Transmit Input Power | 0dBm min 20 dBm max |
| Receive Gain | 15 dB |
| Noise Figure | 3.6 dB |
| LED Indicators | Red for Receive (Default Mode), Green for Transmit |
| Power Consumption @ 28V DC | 80mA Rx, 1.6A Tx |
| Operating Temp | -40 °C to + 65 °C |
| DC Power | 28 V DC via direct feed |
| Dimensions | 4.8”x6.4”x1.2” |
