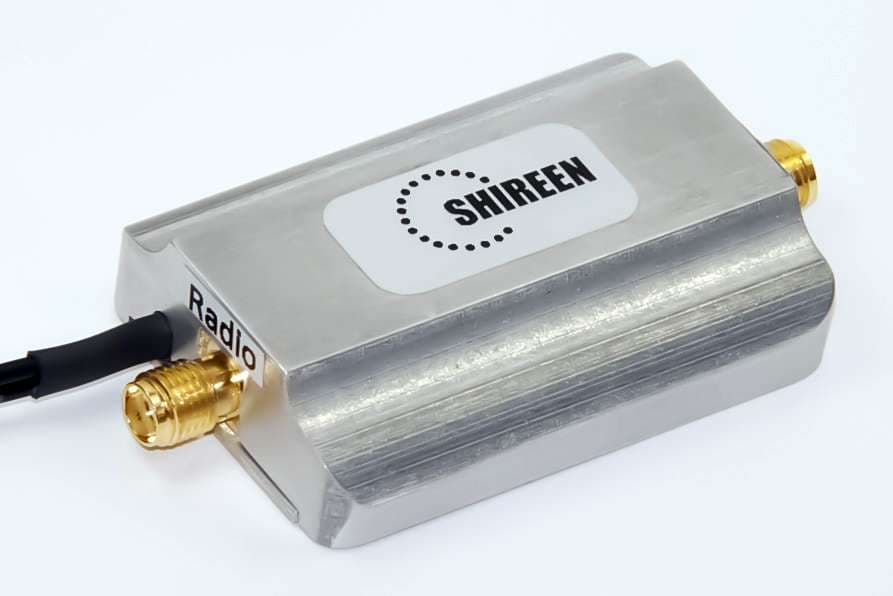

Shireen 5.8 GHz, 802.11a Amplifier
Brand: ShireenModel: 58104 In Stock
100% GenuineOriginal, factory-validated
Standard Manufacturer WarrantyEnhanced, business-grade
Years of ExpertiseEstablished, delivery-centric
Condition
1
Estimated shipping time across UK: 1-2 business days via DPD , DHL , Parcel Force, & Fedex
Certified Professional Expertise
Product Overview
The latest version of 5.8GHz OEM amplifier module gives peak power of 1watt with 20dB of Tx gain. This low cost high performance 5.8 GHz amplifier is ideal for integrating with any 5GHz radio device. Also available in 5.2~5.3GHz and 4.9~6GHz versions. It can be powered via USB cable (optional).
Key Features
1 Watt Peak Output Power
High power output for reliable communication.
20dB Tx Gain
Excellent signal amplification performance.
Compact PCB Design
0.75" x 1.75" PCB that is only 0.15" high for easy integration.
Status LED
Status LED for Tx, Rx and high speed switching.
Made in USA
Manufactured in the United States.
Multiple Frequency Versions
Also available in 5.2~5.3GHz and 4.9~6GHz versions.
Technical Data
| Parameter | Rating / Detail |
|---|---|
| Operating Range | 5725 - 5875 MHz (5.15~5.25 GHz version available upon request) |
| Operating Mode | TDD, Time Division duplex |
| Transmit Power | 1W (30dBm) peak |
| Transmit Gain | 20 dB |
| Transmit input Power | 0dB min, 12 dB max |
| Receive Gain | 20-22 dB |
| Noise Figure | 3.5 dB |
| LED indicators | Red for Receive, Green for Transmit |
| Power Consumption | Rx: 45mA, Tx: 1.4A @ 6V DC |
| Operating Temp | -40 °C to + 70 °C |
| Dimensions | 0.75" x 1.75" x 0.15 (H) |
| RF connectors | Options of End launch SMA, MCX or coax cable with any RF connector |
| DC input | Via coax cable with signal or DC cable |
| Weight | 2.2 Oz |
