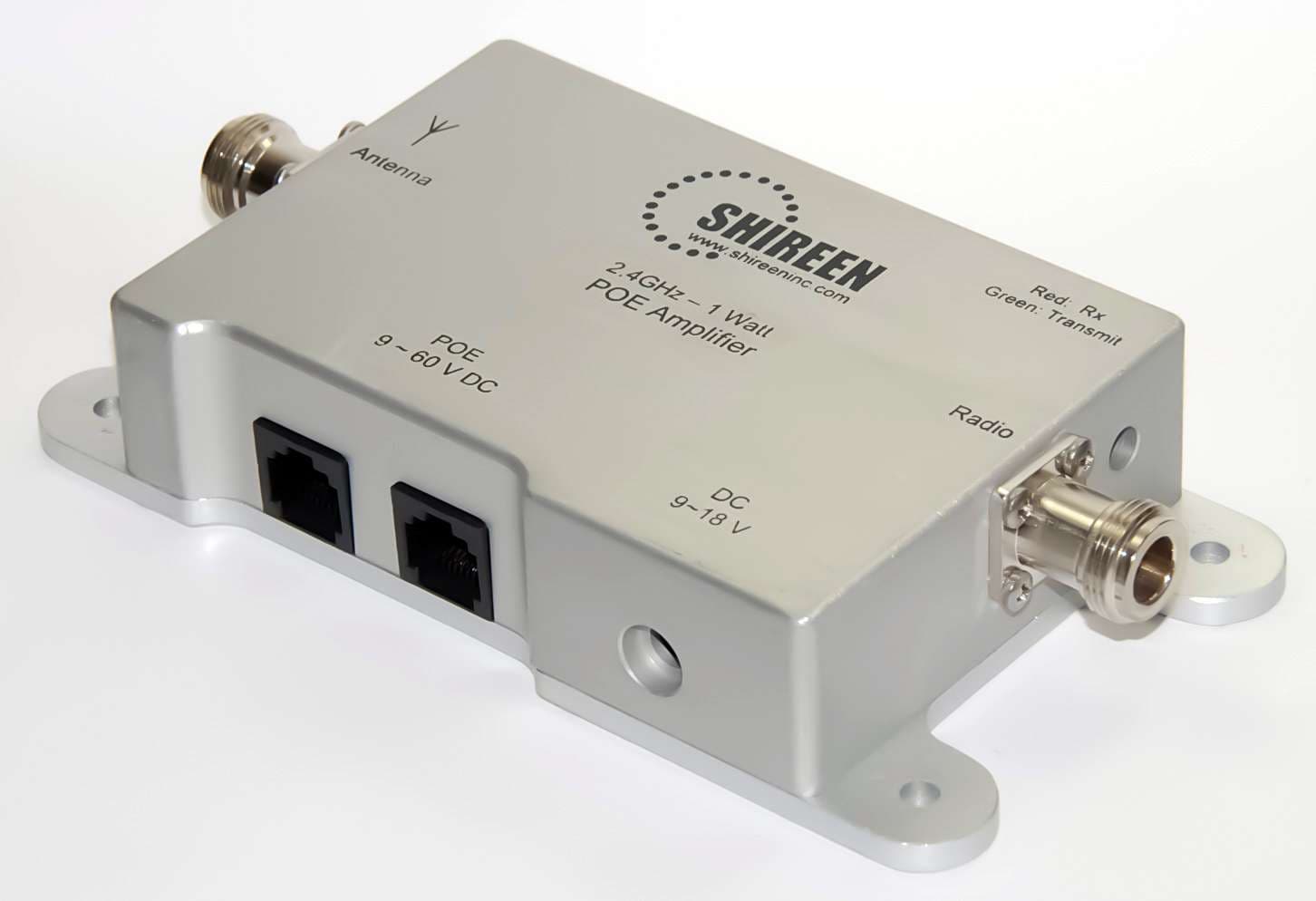

Shireen 2.4GHz 1 Watt POE Amplifier
Estimated shipping time across UK: 1-2 business days via DPD , DHL , Parcel Force, & Fedex
Certified Professional Expertise
Product Overview
Shireen’s 2.4GHz 1 Watt POE amplifier is designed for wireless systems requiring RF amplification while maintaining Power over Ethernet functionality. Featuring 802.3af compliant circuitry with support for up to 60V DC POE, this amplifier integrates seamlessly with existing 2.4GHz wireless equipment. With dual parallel POE ports, optional high-gain configuration, and flexible DC power input, it is ideal for outdoor wireless networks, enterprise deployments, and OEM applications.
Key Features
Amplification
Provides 1 Watt RF output power for 2.4 GHz wireless systems
POE Support
Integrated IEEE 802.3af compliant Power over Ethernet circuitry
High Voltage Compatibility
Supports Power over Ethernet input from 12V to 60V DC
Wireless Integration
Designed for 2.4 GHz wireless equipment operating on POE infrastructure
Dual POE Ports
Two parallel POE ports allow multiple devices to share POE connectivity
Power Flexibility
Can operate from either POE or a 12V DC power adapter
Configurable Gain
Optional 22 dB transmit gain available through factory configuration
Industrial Grade
Wide operating temperature range from -40°C to +70°C
Status Monitoring
Integrated LED indicators provide receive and transmit status information
Made in USA
Designed and manufactured in the United States
Technical Data
| Parameter | Rating / Detail |
|---|---|
| Product Name | 2.4GHz 1 Watt POE Amplifier |
| Item Number | 24106 |
| Operating Range | 2400 - 2500 MHz |
| Operating Mode | TDD (Time Division Duplex) |
| Transmit Power | 30 dBm (1 Watt) |
| Transmit Gain | 16 dB (22 dB optional, factory configured) |
| Transmit Input Power | 5 dBm min, 18 dBm max |
| Receive Gain | 10 dB |
| Noise Figure | 3.5 dB |
| LED Indicators | Red for Receive (Default Mode), Green for Transmit |
| Power Consumption | 45 mA Rx, 700 mA Tx @ 12 VDC |
| Operating Temperature | -40°C to +70°C |
| Dimensions | 3.0 x 6.0 inches (with Type N female connectors) |
| Weight | 1 lb 1.0 oz |
| RF Connectors | Type N Female |
| DC Power | DC Jack: 12 VDC Max POE Input: 12V - 60V DC |
| POE Standard | IEEE 802.3af Compliant |
| Country of Manufacture | USA |
