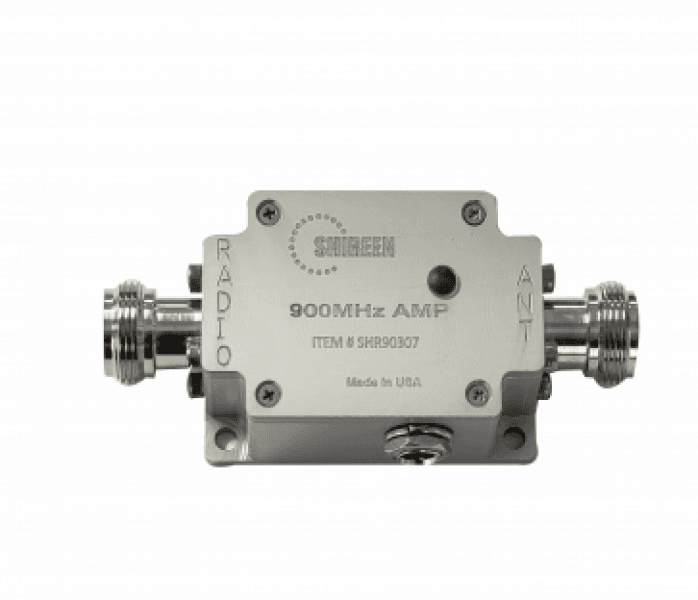

Shireen 900MHz Bidirectional Amplifiers
Official Warranty Included
Unit Price
1
Description
A powerful and efficient RF amplifier with 17dB Tx gain and 16dB Rx gain. Operates within a 902-928 MHz band. The set includes solid state power amplifier, universal power supply (6 V DC), and an RP SMA Male-to-N-Male cable.
Key Features
High Tx/Rx Gain
Recovers insertion losses while staying within legal power limits and provides a full 16dB Rx gain for noise reduction.
Flexible Power Options
Can be powered by a regulated 5V DC or unregulated 6–12V DC.
Energy Efficient
Consumes only 45mA in Rx mode.
Technical Data
| Parameter | Rating / Detail |
|---|---|
| Operating Range | 902 - 928 MHz (863~870 MHz optional) |
| Operating Mode | TDD, Time Division Duplex |
| Transmit Power | 33 dBm, 1-2 Watt |
| Transmit Gain | 17 dB |
| Transmit Input Power | 0dB min +/- 1 (trigger point) 27 dB max |
| Receive Gain | 16 dB |
| Noise Figure | 0.9 dB |
| LED Indicators | Red for Receive Green for Transmit |
| Power Consumption @ 6V DC | Rx: 30mA, Tx: 800mA |
| Operating Temp | -40 °C to + 70 °C |
| Switching Speed | Less than 1us |
