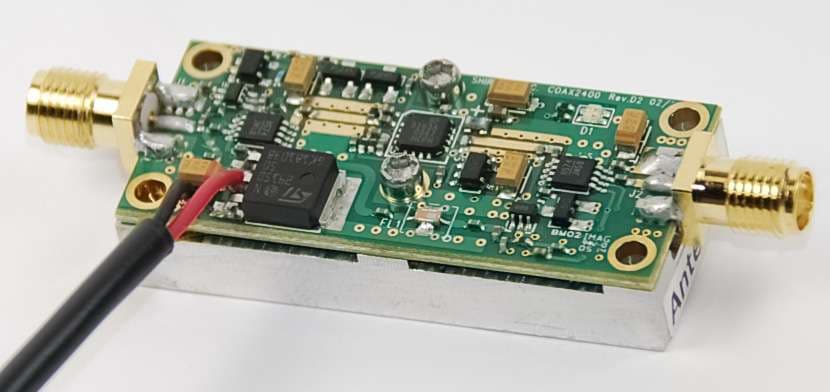

Shireen 2.4GHz OEM Module 20dB Gain 1 Watt Linear 2 Watt Peak Amplifier
Estimated shipping time across UK: 1-2 business days via DPD , DHL , Parcel Force, & Fedex
Certified Professional Expertise
Product Overview
Shireen’s compact 2.4GHz OEM amplifier module is engineered for seamless integration with wireless radios, 802.11b/g systems, AM/FM equipment, and video transmission applications requiring increased RF power. Delivering 1 Watt linear output with up to 2 Watt peak power, this ultra-compact amplifier offers high efficiency, minimal heat generation, and flexible power options including power-over-coax or direct DC feed for OEM and embedded applications.
Key Features
Amplification
Linear 1 Watt RF amplifier with 2 Watt peak output capability
Frequency Band
Designed for operation in the 2.4 GHz ISM band
Integration
OEM add-on module for existing wireless radio equipment
Compatibility
Supports 802.11b/g, AM/FM, and video transmission products
Compact Design
Ultra-small PCB footprint of 1.75 x 0.75 inches
Efficiency
Extremely efficient design eliminating the need for heat dissipation hardware
Linearity
Maintains linear amplification for signal integrity
Power Flexibility
Can be powered via coaxial cable with DC injector or direct PCB wiring
Monitoring
Built-in LED indicators for receive and transmit status
Industrial Grade
Operates in temperatures ranging from -40°C to +70°C
Technical Data
| Parameter | Rating / Detail |
|---|---|
| Product Name | 2.4GHz OEM Module |
| Item Number | 24203 |
| Operating Range | 2400 - 2500 MHz |
| Operating Mode | TDD (Time Division Duplex) |
| Transmit Power | 33 dBm Saturated, 30 dBm (1 Watt) Linear |
| Peak Output Power | 2 Watt |
| Transmit Gain | 20 dB Linear Gain |
| Transmit Input Power | 1 dBm min, 12 dBm max |
| Receive Gain | 16 dB |
| Noise Figure | 3.5 dB |
| LED Indicators | Red for Receive (Default Mode), Green for Transmit |
| Power Consumption | 40 mA Rx, 1.2 A Tx @ 6 VDC |
| Operating Temperature | -40°C to +70°C |
| Dimensions | 1.75 x 0.75 inches |
| Weight | 1.0 oz (29 g) |
| RF Connectors | SMA Female (Optional) |
| DC Power | Over coax using DC injector or direct feed via soldered wire |
