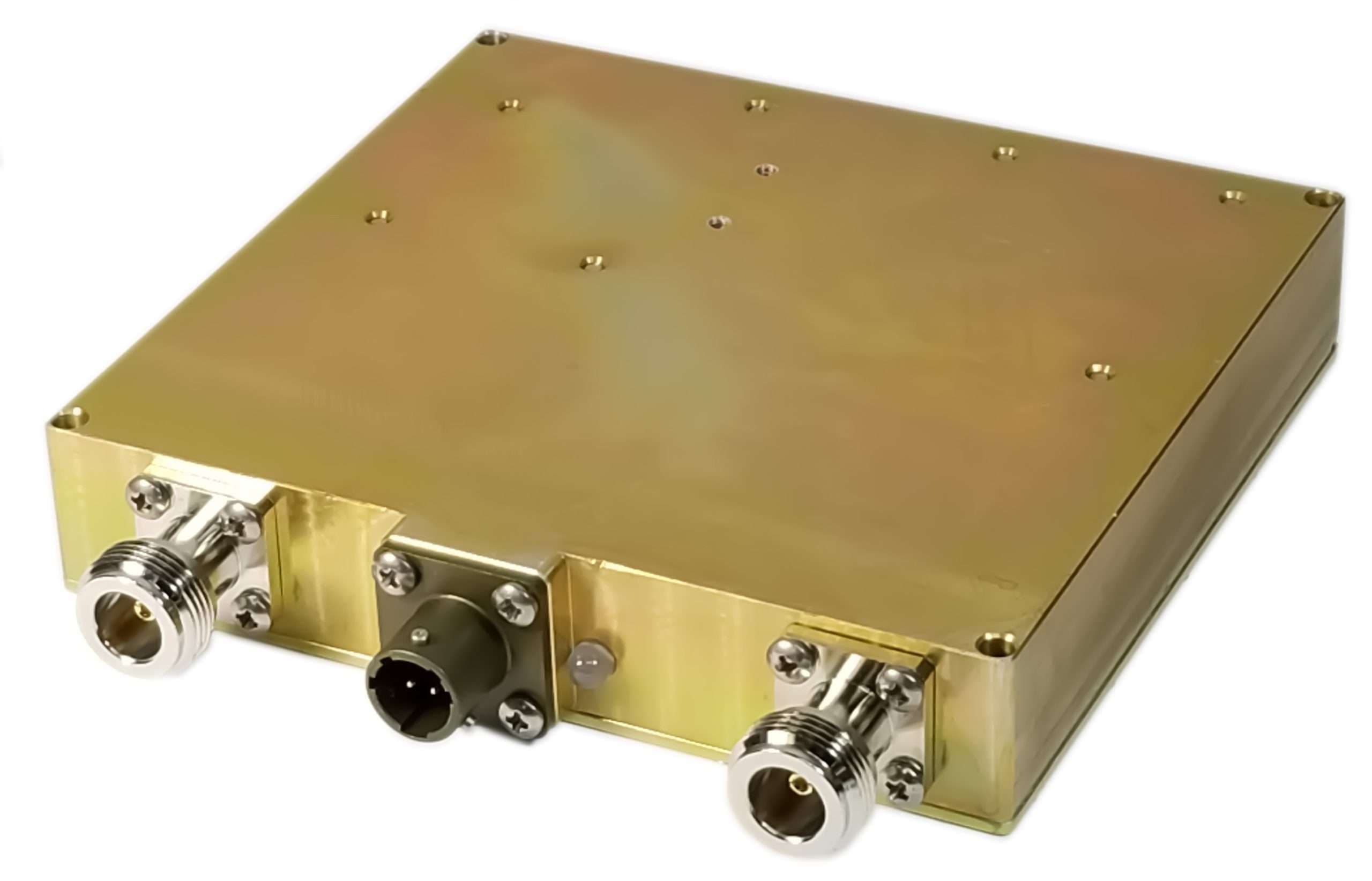

Shireen 500-2700 MHz 100W Wide Band Amplifier
Estimated shipping time across UK: 1-2 business days via DPD , DHL , Parcel Force, & Fedex
Certified Professional Expertise
Product Overview
It is a high-efficiency, wide band amplifier operating across the 500~2700MHz frequency spectrum. Engineered with advanced components, it delivers a powerful 100 Watt (50 dBm) peak output and features a built-in Tx enable circuit for power conservation. It comes standard with 41 dB transmit gain, with a 12 dB low-gain option available. Due to its high RF power output, sale is restricted to Military, OEM Licensed, or international customers
Key Features
High Power Output
100 Watt (50 dBm) wide band amplification from 500~2700MHz
High Efficiency
Designed with latest available components delivering very high efficiency
Power Conservation
Tx enable circuit to conserve power when amplification not needed
Gain Flexibility
Standard 41 dB gain or optional 12 dB lower gain version for higher power radios and improved efficiency
Wide Frequency Coverage
Covers 500MHz through 2700MHz for multi-band applications
Temperature Monitoring
Temperature LED indicator - Blue (<40°C), Green (<70°C), Red (>70°C)
High Load Tolerance
Maximum load VSWR of 20:1 @ 100W for rugged operation
Industrial Temperature
Operates from -40°C to +65°C with appropriate heatsink
Compact Design
6" x 5.25" x 1.25" form factor weighing only 2.36 lbs (without heatsink)
Sales Restriction
Offered only to Military, OEM Licensed, or overseas customers due to high RF power output
Technical Data
| Parameter | Rating / Detail |
|---|---|
| Product Name | 500~2700MHz 100W Amplifier |
| Item Number | 70-238 |
| Revision | Rev C |
| Operating Range | 500~2700 MHz |
| Transmit Peak Power | 50 dBm (100 Watt) |
| Transmit Gain | 41 dB (+/-3.5), 12 dB optional |
| Transmit Input Power | -10 dBm |
| Small Signal Gain | 43 dB (+/-3.5) |
| Large Signal Gain | 36 dB (+/-3.5) |
| Maximum Load VSWR @ 100 W | 20:1 |
| Harmonics 1950MHz @ 50 W | -30 dBc |
| Harmonics 2.4GHz @ 50 W | -32 dBc |
| Harmonics 700MHz @ 50 W | -8 dBc |
| LED Indicators | Red = Standby (Default mode); Green = Transmit Power |
| Current Draw @ 48 VDC | Standby: 20 mA @ 10 W: 1.6 A @ 20 W: 2.1 A @ 40 W: 3.1 A @ 50 W: 3.5 A @ 100 W: 6.0 A |
| Operating Temperature | -40 °C to + 65 °C - with appropriate heatsink |
| Temperature LED | Blue <40 °C, Green <70 °C, Red >70 °C |
| Storage Temperature | -40 °C to +70 °C |
| Dimensions | 6" x 5.25" x 1.25" |
| Weight | 2.36 lbs without heatsink |
| Connector Type | Type N Female |
| Shock/Vibration | Normal truck transport |
