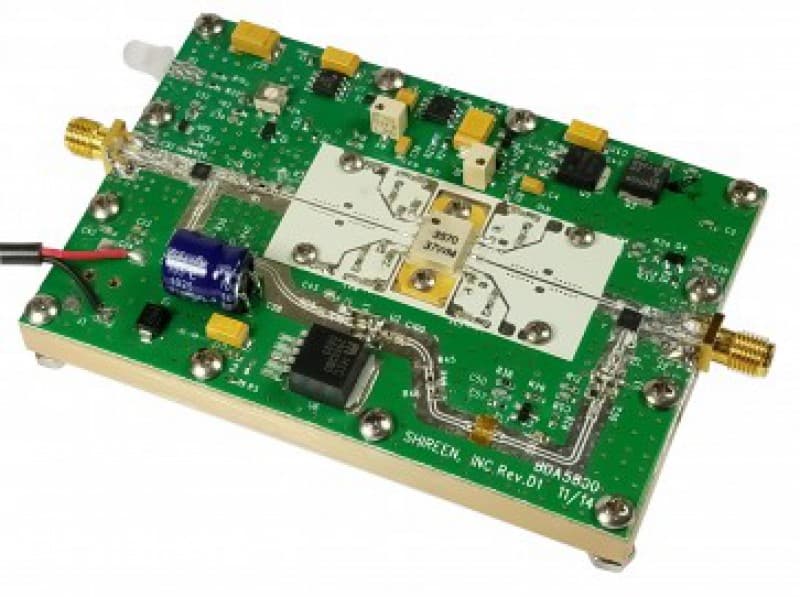

Shireen 3.4-6.0 GHz Bi-directional 3 Watt Amplifier
Official Warranty Included
Unit Price
1
Description
A versatile RF power amplifier for secure and reliable signal amplification across military, public safety, and UNII bands. Supports advanced data radios and offers broad compatibility with high-speed and precision.
Key Features
Wide Frequency Range
Operates over a wide range from 3.4 GHz to 6.0 GHz and cover all bands including military, public safety, and UNII.
High-Speed Switching
Comes with an advanced switch circuit for smooth operation with high-speed data radios.
Optimized for High Linearity
Supports modulation schemes like 16 QAM for optimal performance in the 1-2 watt range.
Technical Data
| Parameter | Rating / Detail |
|---|---|
| Operating Range | 3400 - 6000 MHz |
| Operating Mode | TDD, Time Division Duplex |
| Transmit Power | P1dB = 34.9dBm |
| Transmit Gain | 17 dB +/-1 |
| Transmit Input Power | 5dBm min 17 dBm max |
| Receive Gain | 22 dB |
| Noise Figure | 3.5 dB |
| LED Indicators | Red for Receive (Default Mode), Green for Transmit |
| Power Consumption @ 12V DC | 80 mA Rx, 3000 mA Tx |
| Operating Temp | -40 °C to + 70 °C |
| DC Power | 12 V DC |
| Dimensions | 4.23”x2.85” |
