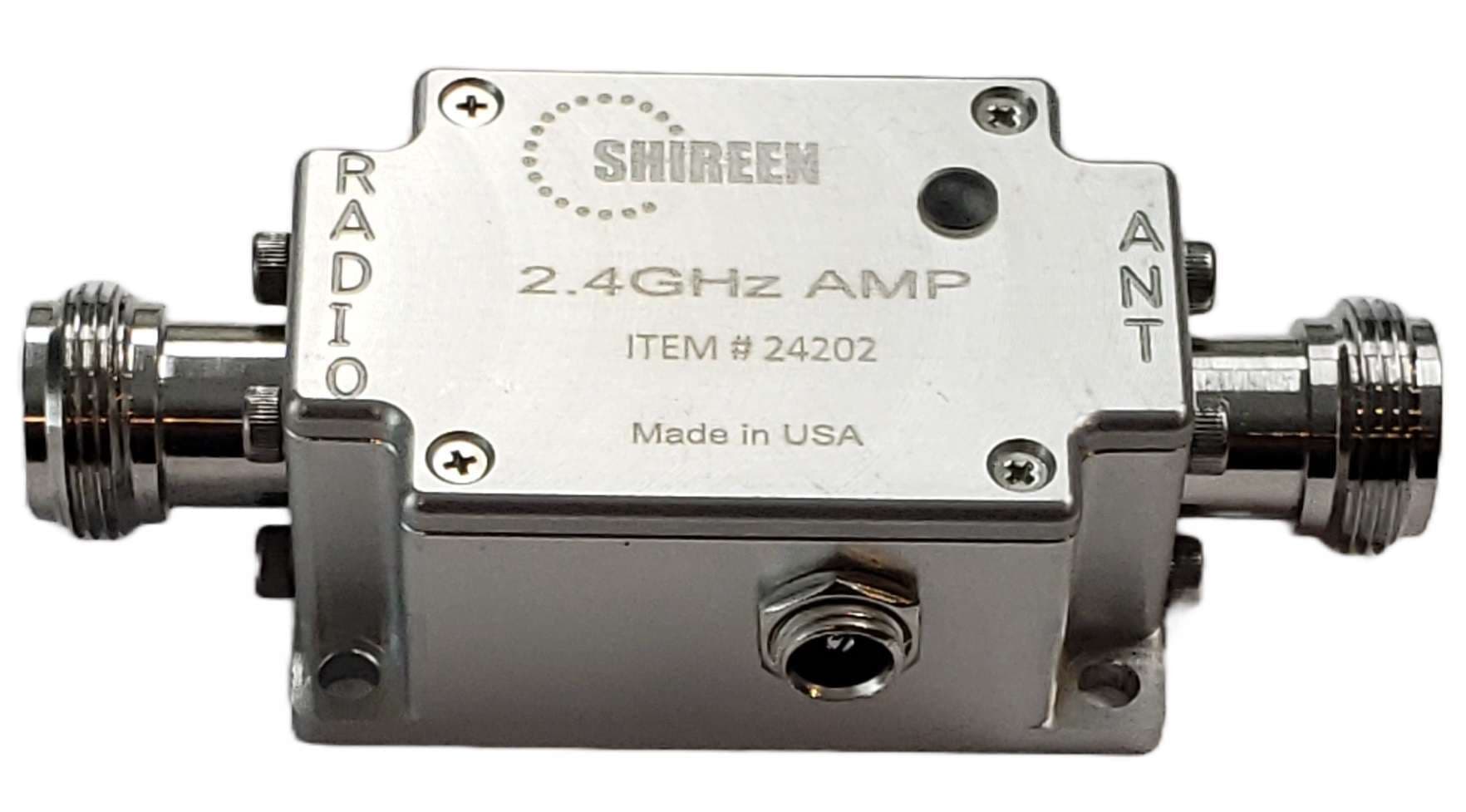

Shireen 2.4Ghz, Indoor Bidirectional Amplifier with 2-Watt peak power
Estimated shipping time across UK: 1-2 business days via DPD , DHL , Parcel Force, & Fedex
Certified Professional Expertise
Product Overview
Shireen’s 2.4GHz bi-directional amplifier is engineered for high-speed wireless applications operating across the 2400–2500 MHz ISM band. Featuring rapid transmit/receive switching, configurable transmit gain up to 22dB, integrated receive filtering, and highly efficient power consumption, this compact amplifier enhances signal coverage and receiver sensitivity for modern wireless deployments. Designed and manufactured in the USA for reliable performance across data-intensive applications.
Key Features
ISM Band Coverage
Covers 2400-2500MHz ISM band for WiFi and industrial applications
High Speed Switching
Designed for all applications where high speed switching between Tx and Rx is required (<1us)
Peak Output Power
2 Watt (33 dBm) peak output power for extended range
Gain Flexibility
Standard 20 dB Tx gain, modifiable from 0-22dB at factory to meet specific requirements
Receive Sensitivity
18 dB Rx gain improves receive sensitivity by many folds
Receive Filtering
Rx side fitted with 2400-2500MHz band pass filter for out-of-band noise protection
Low Power Consumption
Highly efficient amplifier consuming only 45mA during Rx mode
Complete Kit
Includes amplifier and universal power supply (110~240VAC to 6V DC)
Wide Temperature Range
Operates from -40°C to +70°C for demanding environments
Compact Form Factor
Small 2.55" x 1.35" footprint weighing only 2 Oz
Domestic Manufacturing
Made in the USA
Technical Data
| Parameter | Rating / Detail |
|---|---|
| Product Name | 2.4GHz Bidirectional Amplifier |
| Operating Range | 2400 - 2500 MHz |
| Operating Mode | TDD, Time Division duplex |
| Transmit Power | 1-2W (33 dBm peak) |
| Transmit Gain | 20 dB (can be modified from 0-22dB at factory) |
| Transmit Input Power | 0 dB min +/- 1 (trigger point), 27 dB max |
| Receive Gain | 18 dB |
| Switching Speed | Less than 1us |
| Noise Figure | 3.5 dB |
| LED Indicators | Red for Receive, Green for Transmit |
| Power Consumption @ 6V DC | Rx: 40mA, Tx: 1200mA |
| Operating Temp | -40 °C to + 70 °C |
| Dimensions | 2.55" x 1.35" (including connectors) |
| RF Connectors | N Females |
| DC Input | Via DC Jack 2.5mm |
| Weight | 2 Oz |
| Kit Includes | Amplifier, Universal power supply (110~240VAC to 6 V DC) |
