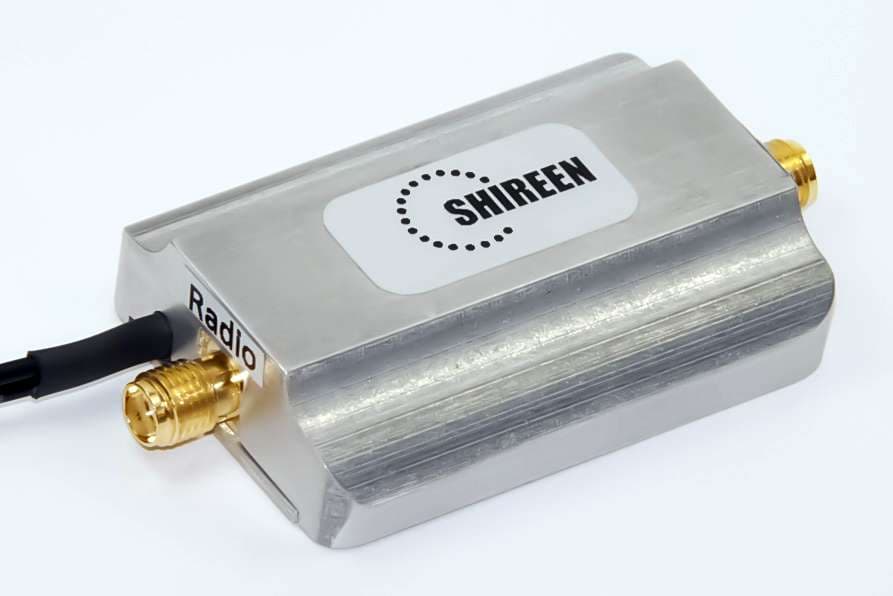

Shireen 2.4GHz 1 Watt Amplifier USB Powered
Estimated shipping time across UK: 1-2 business days via DPD , DHL , Parcel Force, & Fedex
Certified Professional Expertise
Product Overview
Shireen’s ultra-compact 2.4GHz 1 Watt amplifier delivers efficient wireless signal amplification in a portable USB-powered design. Built for wireless LAN, data communication, and mobile applications, this amplifier features 20dB transmit gain, integrated low noise amplification, receive filtering, and rugged CNC-machined aluminum housing. Its low power consumption makes it ideal for laptop users, portable deployments, and wireless connectivity on the go.
Key Features
Amplification
Provides 1 Watt RF output power with 20 dB transmit gain
USB Powered
Can be powered directly from a USB port for mobile and laptop applications
Compact Design
One of the smallest 1 Watt amplifiers available with a compact form factor
HBT Technology
Uses Gallium Arsenide Hetero-junction Bipolar Transistor (HBT) technology for highly linear and efficient amplification
Low Noise Amplifier
Integrated 22 dB LNA improves receive sensitivity while maintaining low noise levels
Receive Filtering
Built-in band-pass filtering provides additional protection from out-of-band interference
Efficiency
Ultra-low power consumption compared to similar 1 Watt amplifiers
Enclosure
Durable CNC machined anodized aluminum housing
Mobility
Designed for portable wireless LAN deployments and field use
Warranty
Includes a 2-year manufacturer warranty
Technical Data
| Parameter | Rating / Detail |
|---|---|
| Product Name | 2.4GHz 1 Watt Amplifier USB Powered |
| Item Number | 24251 |
| Operating Range | 2400 - 2500 MHz |
| Operating Mode | TDD (Time Division Duplex) |
| Transmit Power | 30 dBm (1 Watt) |
| Transmit Gain | 20 dB |
| Transmit Input Power | 3 dBm min, 15 dBm max |
| Receive Gain | 22 dB |
| Noise Figure | 2.5 dB |
| LED Indicators | Red for Receive, Green for Transmit (visible only when cover removed) |
| Power Consumption | 40 mA Rx, 800 mA Tx @ 6 VDC |
| Operating Temperature | -40°C to +70°C |
| Dimensions | 2.55 x 1.35 inches (including connectors) |
| Enclosure | CNC Machined Anodized Aluminum |
| Connectors | Radio Side: SMA Female Antenna Side: SMA RP Female |
| Weight | 2.0 oz (134 g) |
| Power Supply | 6 VDC via AC Adapter or Optional USB Power |
| Included Accessories | 0: 1 Watt Amplifier Unit 1: Universal Power Supply (110~240VAC to 6 VDC) 2: Optional USB Cable |
