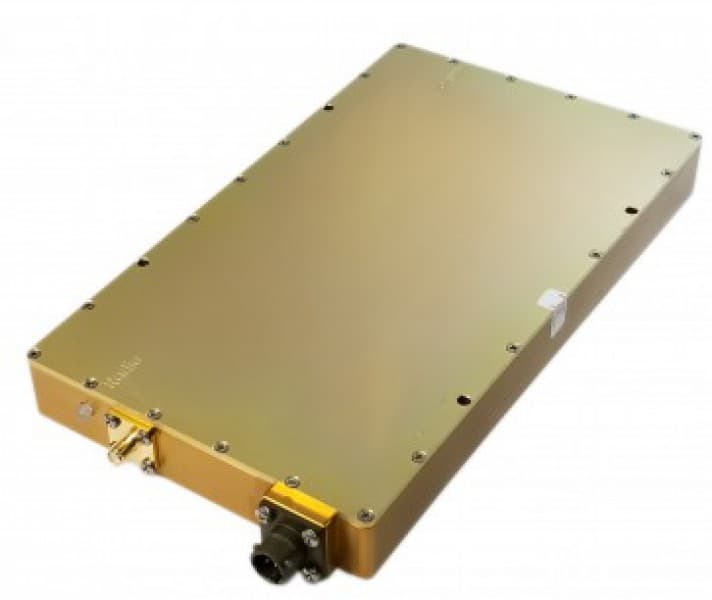

Shireen 1300~2600MHz 100 Watts Bidirectional Amplifier
Brand: ShireenModel: 70-230 In Stock
100% GenuineOriginal, factory-validated
Standard Manufacturer WarrantyEnhanced, business-grade
Years of ExpertiseEstablished, delivery-centric
Condition
1
Estimated shipping time across UK: 1-2 business days via DPD , DHL , Parcel Force, & Fedex
Certified Professional Expertise
Product Overview
Bidirectional RF power amplifier designed for wearable, portable, and MANET (Mobile Ad Hoc Network) applications. Compatible with numerous TDD radios and facilitates swift switching between Tx and Rx modes.
Key Features
100W Output Power
Offers a robust 100 watts of RF output power and seamlessly integrates into portable and wearable network systems.
Broad Frequency Range
Supports a broad frequency range of 1765-2250 MHz and is compatible with common proprietary modulation schemes.
Rugged Design
Houses in a rugged casing to withstand extreme temperatures, humidity, and rugged terrain.
Technical Data
| Parameter | Rating / Detail |
|---|---|
| Operating Range | 1300 - 2600 MHz |
| Operating Mode | TDD, Time Division Duplex |
| Transmit Power | 50dBm, 100 Watt |
| Transmit Gain | 12dB +/-2dB |
| Transmit Input Power | 5dBm min 40 dBm max |
| Receive Gain | 20dB +/-3dB, (15 dB optional) |
| Noise Figure | <3dB |
| LED Indicators | Red for Receive (Default Mode) Green for Transmit |
| Power Consumption @ 48V DC | 40mA @ Rx, Max 6A @ Tx (depending upon TX duty Cycle) |
| Operating Temp | ‐40 °C to + 65 °C |
| DC Power | 48 V DC 6A |
| Weight | 3.45lbs or 55.2oz |
