Pico Cell Amplifier 1800 MHz GSM, EDGE, LTE, CDMA (MCS5-9, 8PSK)
Estimated shipping time across UK: 1-2 business days via DPD , DHL , Parcel Force, & Fedex
Certified Professional Expertise
Product Overview
Shireen 18-860 Full Duplex Pico Cell Amplifier operates in the 1800 MHz cellular band with uplink frequencies of 1710–1785 MHz and downlink frequencies of 1805–1880 MHz. Delivering 15 Watts of downlink output power, 23 dB downlink gain, and 33 dB uplink gain, this compact weatherproof amplifier is designed for rapid deployment in micro and small-cell base stations, remote coverage installations, public spaces, marine applications, and industrial environments.
Key Features
Full Duplex Operation
Ensures uninterrupted voice and data connections with the subscribers of the BTS.
Dual Signal Enhancement
Simultaneously adds TX power to the uplink as well as RX gain to the downlink frequencies.
Direct Integration
Designed to connect directly to the Carrier or OEM BTS utilizing localized power.
Rapid Deployment
Compact size and easy installation make it ideal for rapid deployable small and micro cellular base stations.
Rugged Outdoor Design
Tower-mounted amplifier housed in a fully weather-conditioned, single pole-mounted enclosure with sealed watertight connections.
SISO Support
Amplified output is provided via a single SISO antenna connector.
Versatile Applications
Ideal for in-building/remote areas, Marine & Aviation, public spaces, disaster-hit areas, rural open spaces, and industrial sites (Oil, Gas, Mining).
Premium Enclosure
Built with a watertight machined anodized aluminum housing featuring a protective powder-coated finish.
Technical Data
| Parameter | Rating / Detail |
|---|---|
| Band | 3 |
| Uplink Frequency | 1710~1785 MHz |
| Downlink Frequency | 1805~1880 MHz |
| Downlink Output Power | 15 Watt |
| Downlink Power Gain | 23dB |
| Uplink Power Gain | 33dB |
| Uplink Noise Figure | <3dB |
| Power Consumption | 2A @ 24V DC |
| RF Connections | Type N |
| Dimensions | 5.8" x 6.3" x 1.5" (148mm x 161mm x 37mm) |
| Weight | 2lb. 4Oz. (1.0 kg) |
| Operating Temp | -40 °C to + 70 °C |
| Enclosure | Watertight machined anodized aluminum housing with a powder-coated finish |
| Power Connector | Mil Spec Din Type Connector |
Certifications
Similar Products
Shireen
Pico Cell Amplifier 760 MHz GSM, EDGE, LTE, CDMA (MCS5-9, 8PSK)
Shireen

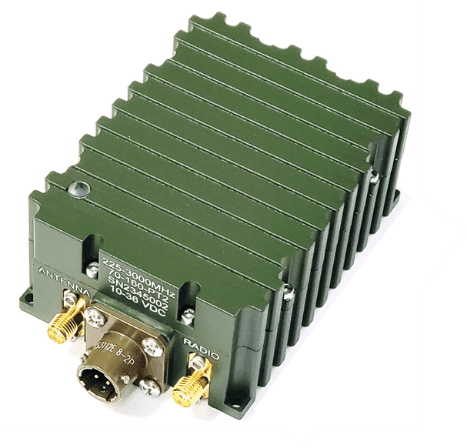

Shireen 225MHz~3 GHz MIMO Bi-Directional Amplifier 20 Watt Output
