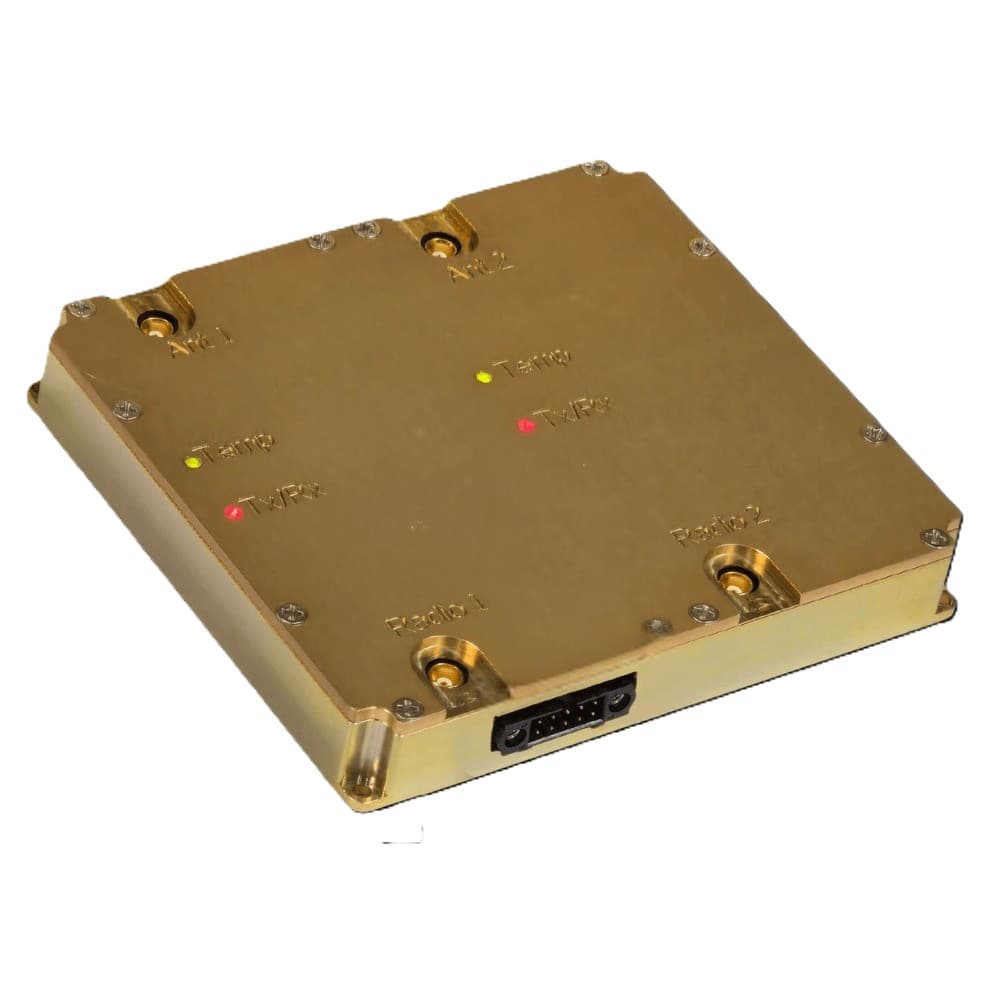

Shireen 2.2~2.7 GHz MIMO Bi-directional Amplifier 40 Watt Output
Estimated shipping time across UK: 1-2 business days via DPD , DHL , Parcel Force, & Fedex
Certified Professional Expertise
Product Overview
Shireen's MIMO SWaP bi-directional amplifier delivers powerful 40W RF output across the 2.2~2.7 GHz frequency range, engineered for modern MANET, TSM, UAV, and tactical communication systems. Featuring auto TX signal detection, high-speed switching, no radio interface requirement, and optional manual TTL control, this compact wideband amplifier is ideal for secure, high-performance wireless deployments.
Key Features
MIMO Configuration
Dual-port MIMO design for enhanced throughput and reliability
No Radio Interface
Auto TX signal detection requires no radio interface connection
Waveform Compatible
Compatibility with all modern and emerging MANET, TSM waveforms
Manual Control
Manual TX control with optional 5V or 3V TTL
Temperature Monitoring
Available temperature sensor readings with LED indication
Compact MIMO
Compact MIMO form factor in a rugged machined aluminum enclosure
Technical Data
| Parameter | Rating / Detail |
|---|---|
| Operating Range | 2200~2700 MHz |
| Operating Mode | TDD, Time Division Duplex |
| Tx Peak Power | 40W (each port) |
| Transmit Gain | 27 (±1) dB, (20dB optional) |
| Tx Input Power | 2 dBm min (±2); 23 dBm max |
| Rx Gain | 13 ± 1 dB |
| Noise Figure | <2.5 dB |
| T/R Switching | Auto switching at <1 µs |
| LED Indicators | Red for Rx (default mode), Green for Tx; Temperature <70°C LED Green, Temperature >70°C LED Red |
| DC Power | 28VDC 7A Max |
| DC Power Range | 24-30 VDC |
| Power Consumption | With 28VDC, 60mA Rx, 6A @ 30W Tx CW |
| Operating Temperature | -40 °C to +70 °C |
| Temperature Sensor | Indicator LED Green <70°C, Red >70°C |
| Dimensions | 3.3" x 3.7" x 0.6" — Base plate has four corner flanges with holes for mounting screws |
| RF Connector | Radio Input: MCX-F, ANT Output: MCX-F (2 ports each) |
| Power Connector | 10 Pin M80-Header connector or Fly lead Optional |
| Weight | 190 g |
