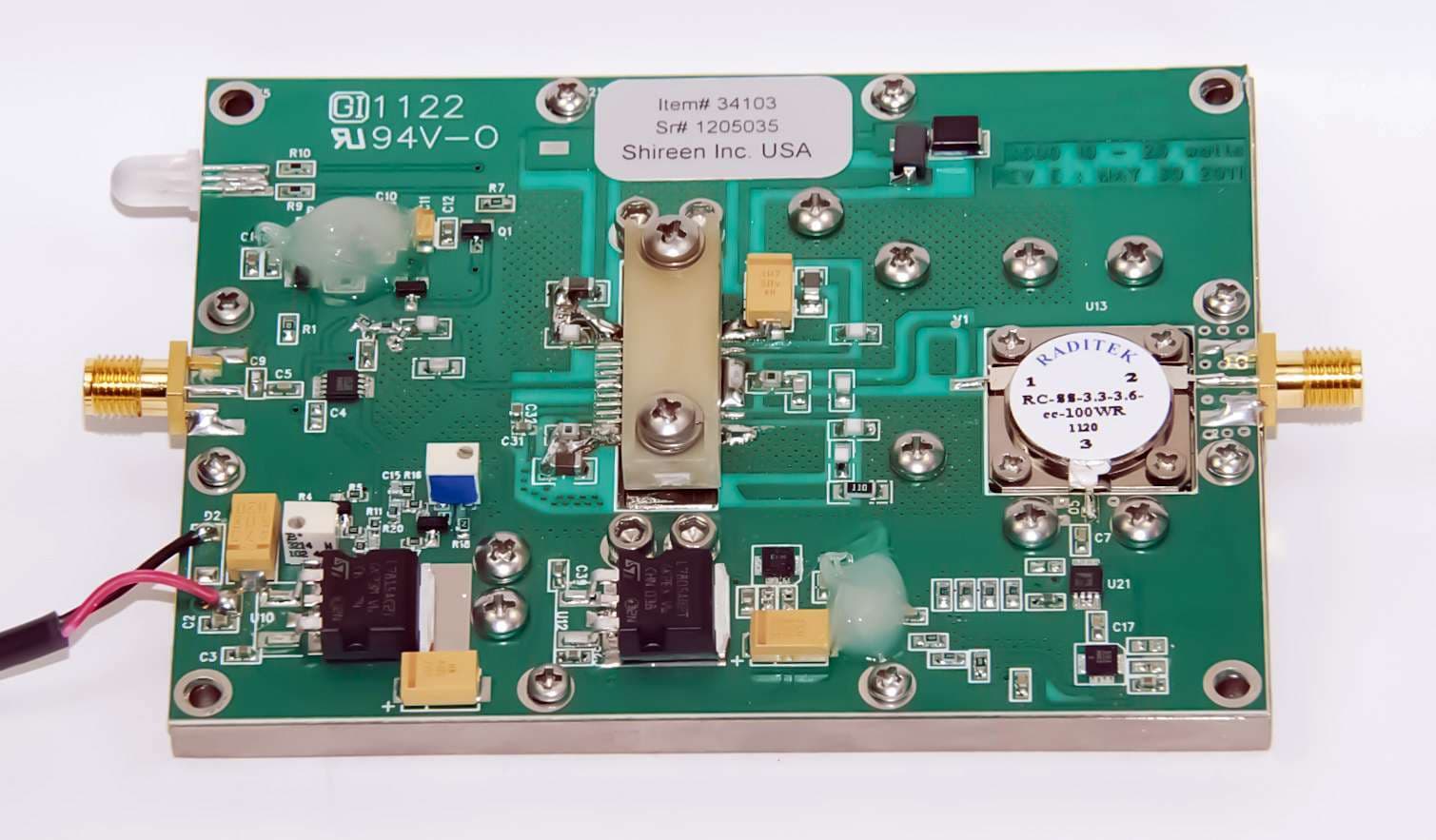

Shireen 2.4GHz 10~20 Watt Amplifier OEM Module
Estimated shipping time across UK: 1-2 business days via DPD , DHL , Parcel Force, & Fedex
Certified Professional Expertise
Product Overview
Shireen’s 2.4GHz OEM amplifier module is engineered for high-power wireless applications requiring enhanced RF performance and compact integration. Delivering 10 Watts linear output with up to 20 Watts peak power, this amplifier is designed for use with existing wireless radio equipment and supports flexible integration options for OEM and embedded systems. Its compact form factor, multiple power options, and rugged design make it suitable for military, licensed, and specialized deployments requiring reliable high-power amplification.
Key Features
Amplification
Provides 10 Watt linear output power with up to 20 Watt peak output capability
High Power Design
Designed for applications requiring substantially higher RF output power
OEM Integration
Compact OEM module intended for integration with existing wireless radio equipment
Frequency Band
Optimized for operation in the 2.4 GHz ISM band
Linearity
Maintains 20 dB transmit gain while delivering high RF output power
Low Noise Performance
Features a low 1.8 dB noise figure for improved receiver performance
Power Flexibility
Supports power delivery through coaxial cable with DC injector or direct wiring
Mounting Requirement
Requires mounting to a metal surface for proper heat dissipation
Status Monitoring
Integrated LED indicators for receive and transmit status
Restricted Availability
Available only to military, licensed, and overseas customers due to high RF output power
Technical Data
| Parameter | Rating / Detail |
|---|---|
| Product Name | 2.4GHz 10~20 Watt Amplifier OEM Module |
| Item Number | 24603 |
| Operating Range | 2400 - 2500 MHz |
| Operating Mode | TDD (Time Division Duplex) |
| Transmit Power | 40 dBm (10 Watt Linear), 43 dBm (20 Watt Peak) |
| Transmit Gain | 20 dB |
| Transmit Input Power | 3 dBm min, 23 dBm max |
| Receive Gain | 20 dB |
| Noise Figure | 1.8 dB |
| LED Indicators | Red for Receive (Default Mode), Green for Transmit |
| Power Consumption | 60 mA Rx, 1 A Tx @ 28 VDC |
| Operating Temperature | -40°C to +65°C |
| Dimensions | 3.0 x 4.0 inches |
| Weight | 8.0 oz (with metal base plate) |
| RF Connectors | SMA Female or Soldered Coax Cable |
| DC Power | Over Coax using DC Injector or Direct Feed via Soldered Wire |
