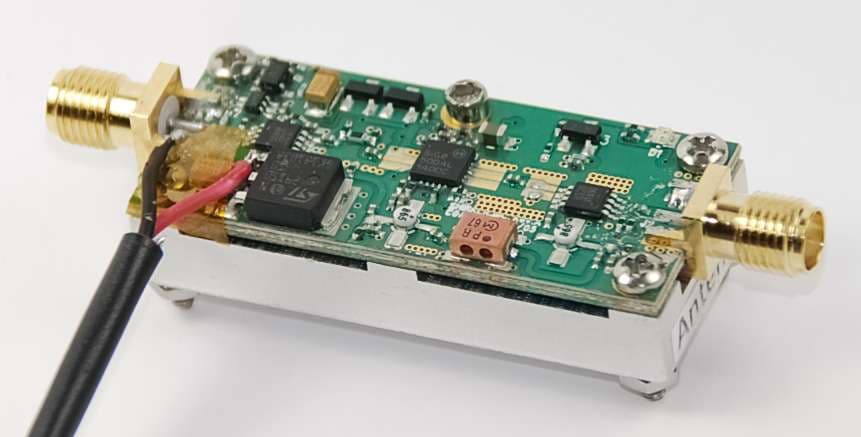

Shireen 5.8GHz 1 Watt OEM Amplifier Module
Estimated shipping time across UK: 1-2 business days via DPD , DHL , Parcel Force, & Fedex
Certified Professional Expertise
Product Overview
Shireen’s 5.8GHz OEM amplifier module delivers cost-effective high-performance RF amplification for 5GHz wireless devices and embedded applications. Designed with a compact low-profile PCB form factor, this amplifier provides 2 Watt peak output power, high transmit gain, and fast switching capabilities for wireless networking, OEM integration, and custom RF deployments. Available in multiple frequency variants to support diverse wireless applications.
Key Features
Compact Size
Ultra-small PCB at only 0.75" x 1.75" x 0.15" high for easy integration
Peak Power Output
2W peak power with 24dB Tx gain for high-performance applications
Cost Effective
Low cost high performance ideal for any 5GHz radio device
Frequency Flexibility
Available in 5.2~5.3GHz and 4.9~6GHz versions
Visual Status
Status LED for Tx, Rx and high speed switching
Domestic Manufacturing
Made in USA
Versatile Connectivity
Multiple RF connector options including end launch SMA, MCX, or coax cable
Technical Data
| Parameter | Rating / Detail |
|---|---|
| Operating Range | 5725 - 5875 MHz (5.15~5.25 GHz version available upon request) |
| Operating Mode | TDD, Time Division duplex |
| Transmit Power | 2W (33dBm) peak |
| Transmit Gain | 24 dB -3dB min |
| Transmit input Power | 15 dB max |
| Receive Gain | 22 dB |
| Noise Figure | 3.5 dB |
| LED indicators | Red for Receive Green for Transmit |
| Power Consumption | Rx: 45mA, Tx: 1.4A @ 6V DC |
| Operating Temp | -40 °C to + 70 °C |
| Dimensions | 0.75" x 1.75" x 0.15" (H) |
| RF connectors | Options of End launch SMA, MCX or coax cable with any RF connector |
| DC input | Via coax cable with signal or DC cable |
| Weight | 1.2 Oz |
