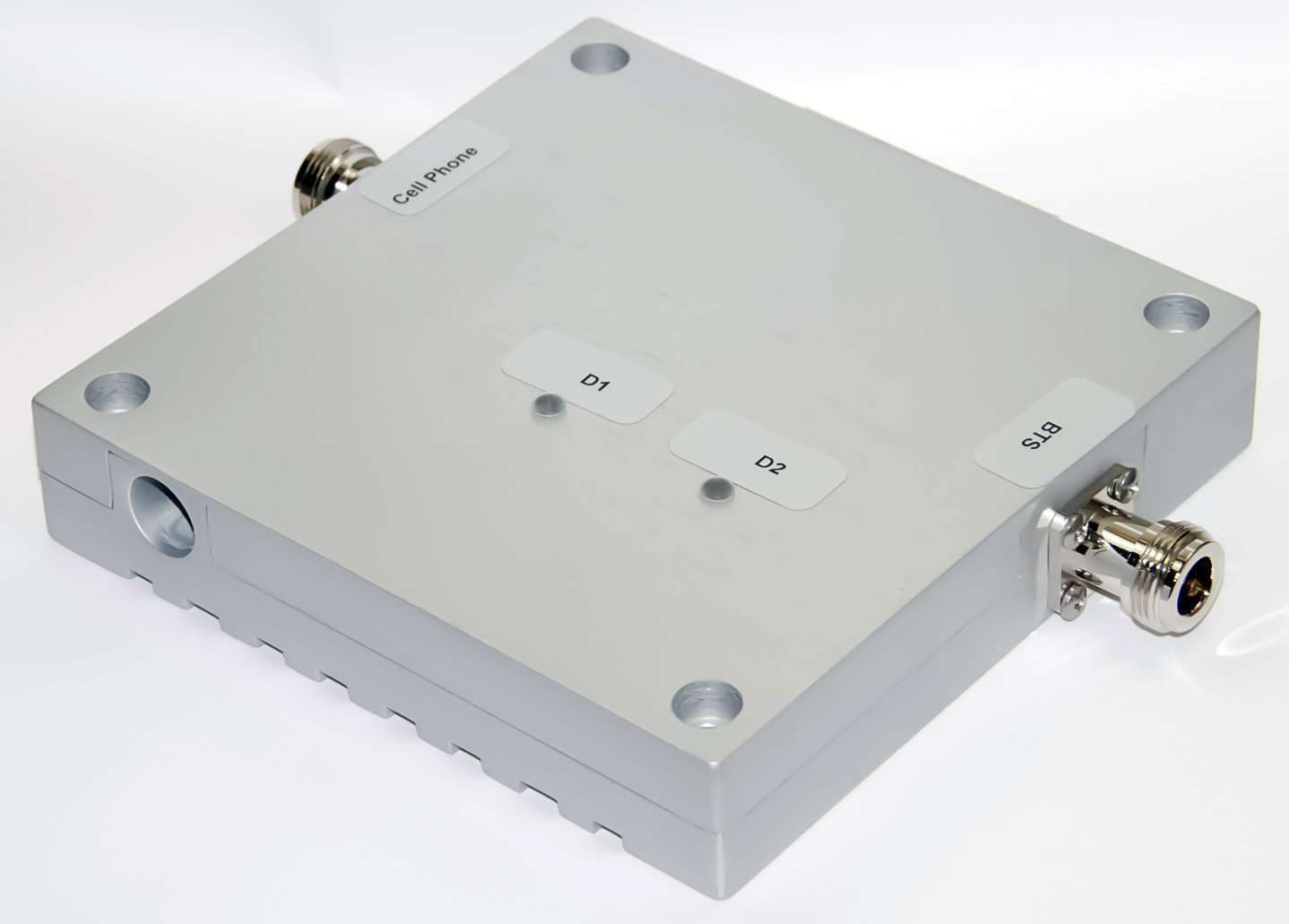

Dual Band Cellular Repeater Amplifier
Estimated shipping time across UK: 1-2 business days via DPD , DHL , Parcel Force, & Fedex
Certified Professional Expertise
Product Overview
This Shireen Model is a high-performance Dual Band Cellular Repeater and Amplifier designed to increase wireless signal strength and improve cellular communication without a physical connection to the handset. Delivering up to 60dB of signal gain, it effectively boosts the performance and range of multiple cell phones simultaneously up to 50 miles away. Operating across the 800 MHz and 1900 MHz bands, it supports AMPS, TDMA, PCS, and CDMA technologies
Key Features
Signal Improvement
Increases signal strength and improves cellular communication without physical connection to the cell phone
Extended Range
Boosts performance and range of cell phones up to 50 miles
Multi-Band Operation
Simultaneous operation on 800MHz and 1900MHz bands for multiple cell phones
High Gain
Signal gain of up to 60dB for strong amplification
No Connection Required
Wireless operation with freedom to walk around while talking on phone
Versatile Applications
Can be employed in large yachts, homes, and offices
Technology Compatible
Works with AMPS/TDMA/PCS/CDMA/GSM850/GSM1900/GPRS
Installation Method
Outside antenna receives base station signal, amplifier boosts it, inside antenna repeats to cell phones
Visual Status
LEDs indicating power on, activity, and fault conditions
Flexible Antenna Connections
Outside and inside antenna ports available in Mini-UHF Female or Type-N
Coverage Note
Coverage area depends on outside signal strength; directional antenna recommended for poor signal areas
Technical Data
| Parameter | Rating / Detail |
|---|---|
| Product Name | Dual Band Cellular Repeater/Amplifier |
| Version | 3 Watt Version |
| Frequency Range - Uplink | 824-849 MHz and 1850-1910 MHz |
| Frequency Range - Downlink | 869-894 MHz and 1930-1990 MHz |
| Optional Frequency Range | Uplink 890-915 MHz and Downlink 935-960 MHz (available upon request) |
| Technology | AMPS/TDMA/PCS/CDMA/GSM850/GSM1900/GPRS |
| Max Output Power | 3W, 35 dBm (824-849 MHz), 2W, 33 dBm (1850-1910 MHz) |
| Dynamic Variable Gain | Up to 60dB gain |
| Impedance | 50 ohms |
| Power Consumption - Standby | 5 VDC / 0.75A |
| Power Consumption - Uplink | 5 VDC / 2.0A |
| Power Supply | 5 VDC, 3.7A |
| RF Connections - Outside Antenna Port | Mini-UHF Female or Type-N |
| RF Connections - Inside Antenna Port | Mini-UHF Female or Type-N |
| Indicator | LEDs indicating power on, activity, and fault conditions |
| Power Switch | SPDT: On/Off |
| Design Signal Strength Reference | -70dB |
| Coverage Note | Can boost performance and range of cell phones up to 50 miles |
