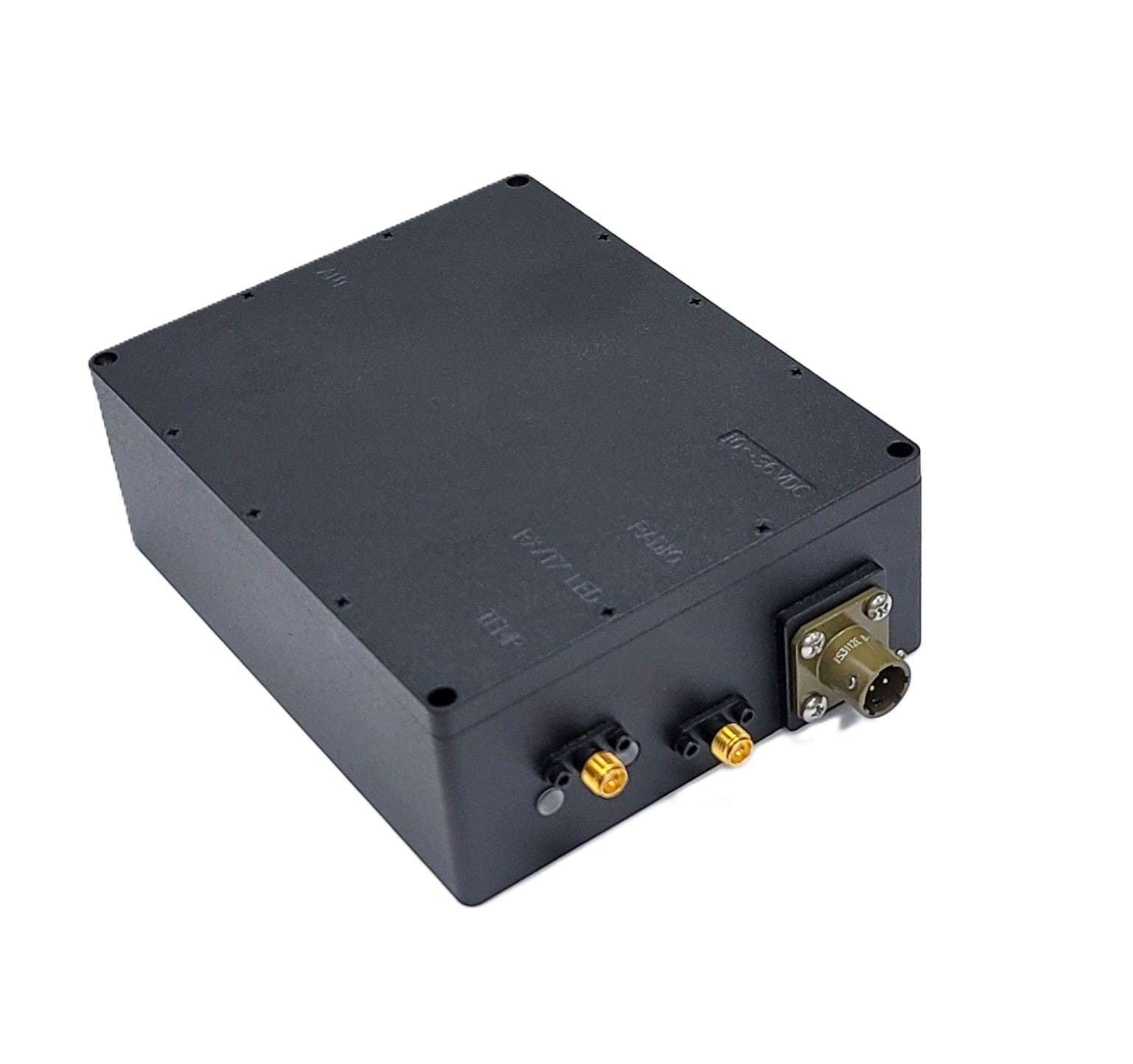

Shireen 300MHz - 6000MHz TDD High Power Bi-Directional Amplifier
Estimated shipping time across UK: 1-2 business days via DPD , DHL , Parcel Force, & Fedex
Certified Professional Expertise
Product Overview
Enhance your communication systems with the Shireen 300MHz - 6000MHz Time Division Duplex (TDD) High Power Bi-Directional Amplifier (BDA). Designed for optimal performance, this wide-band BDA offers a robust solution for various applications requiring high power output and reliable operation.
Key Features
Wide Frequency Range
Operates seamlessly across 300MHz to 6000MHz, ensuring compatibility with a broad spectrum of devices and applications.
High Power Output
Delivers an impressive transmit power of 10 to 20 Watts, making it suitable for demanding environments.
Efficient Power Consumption
Consumes only 50-100mA in Rx mode and 600mA in Tx mode with no signal input, ensuring energy efficiency.
Versatile Power Options
Operates on 48V DC, optional 12~36V DC, providing flexibility for various power supply configurations.
Compact Design
Dimensions of 5" x 4" x 1.75" (without heat sink) make it easy to integrate into existing systems.
Manual Switching Option
Includes a Tx enable connector for manual switching, offering greater control over operations.
Technical Data
| Parameter | Rating / Detail |
|---|---|
| Operating Range | 300MHz - 6000MHz |
| Operating Mode | TDD |
| Transmit Power | 10 to 20 Watts |
| Transmit Gain | 34dB ± 2.5dB, 40dB Optional |
| Rx Gain | 18-20dB |
| Power Consumption | 50-100mA in Rx mode, 600mA in Tx mode with no signal input |
| Power Supply | 48V DC, 12~36V DC Optional |
| Dimensions | 5" x 4" x 1.75" (without heat sink) |
