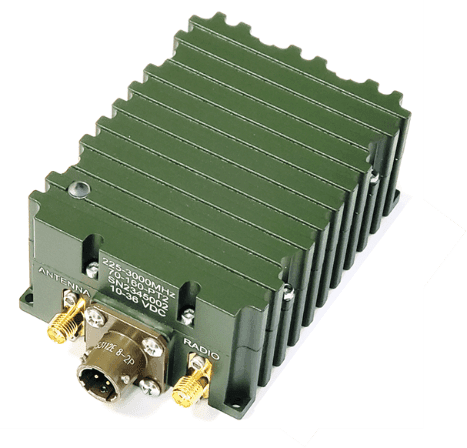

Shireen 225 MHz~3GHz Bi-directional Amplifier

Brand: ShireenModel: 70-160 In Stock

100% GenuineOriginal, factory-validated

Standard Manufacturer WarrantyEnhanced, business-grade

Years of ExpertiseEstablished, delivery-centric

Condition

Estimated shipping time across UK: 1-2 business days via DPD , DHL , Parcel Force, & Fedex

Certified Professional Expertise

Talk to an Expert →

Product Overview

Field proven with TrellisWare TSM waveform, this miniature 20 Watt amplifier is a wide band amplifier that covers 225 MHz through 3 GHz band, making it ideal for SDR based applications. Equipped with high-speed switching circuit, the unit allows use of high-speed radios.

Download Technical Data Sheet (PDF)

Key Features

Wide Band Coverage

Covers 225 MHz through 3 GHz band, ideal for SDR based applications.

High-Speed Switching

Equipped with high-speed switching circuit for use with high-speed radios.

Compact Design

Miniature form factor for space-constrained applications.

Flexible Power Options

10-36 VDC with integrated DC-DC converter or optional 48V.

OEM Package Available

Also offered in OEM package for system integration and developers.

Technical Data

Parameter	Rating / Detail
Operating Range	225 - 3000 MHz
Operating Mode	TDD (Time Division Duplex)
Transmit Peak Power	43 dBm
Transmit Gain	12 dB (+/- 2)
Transmit Input Power	5 dBm min, 34 dBm max
T/R Switching	Auto switching at <1 µs; Optional: manual 3V / 5V TTL
Receive Gain	12 dB (+/- 2)
Noise Figure	<5 dB
LED Indicators	Red for Receive (default mode), Green for Transmit
DC Power	10-36 VDC with integrated DC-DC converter; Optional: 48 V
Power Consumption	With 48 VDC, 110 mA Rx, 1.6 A @ 10W Tx
Operating Temperature	-40 °C to +70 °C (158 °F) with appropriate heatsinking
Dimensions	3.26" (82.8mm) x 2.4" (60.7mm) x 1.39" (35.3mm) w/ DCDC converter; 3.26" (82.8mm) x 2.4" (60.7mm) x 1.07" (27.2mm) w/o DC-DC converter
Weight	6.5 Oz (184.3 g) w/o integrated DC-DC converter; 10.2 Oz (289.2 g) w/ DC-DC converter
