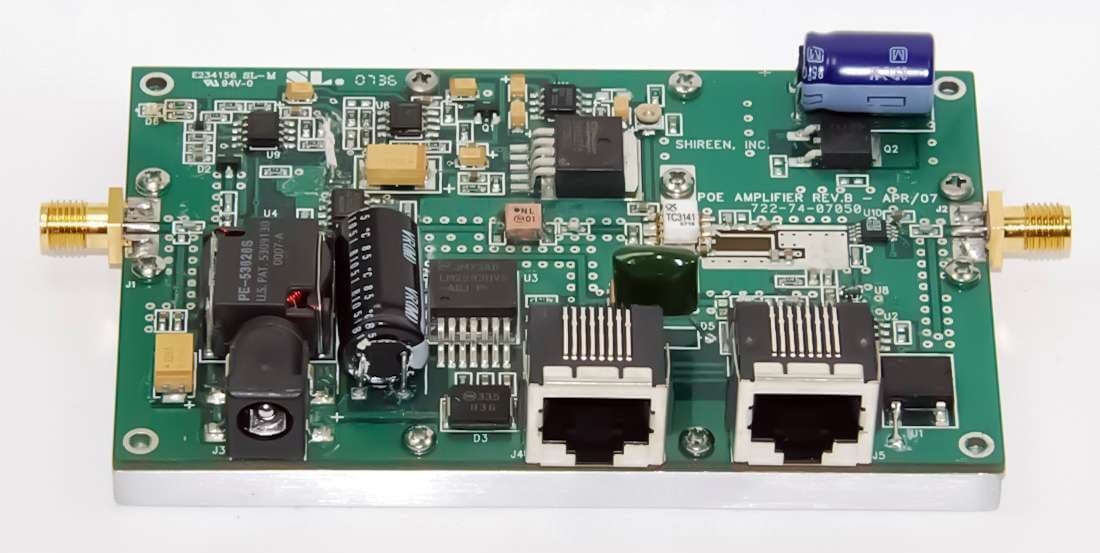

Shireen 2.4GHz 1 Watt POE Amplifier Module
Estimated shipping time across UK: 1-2 business days via DPD , DHL , Parcel Force, & Fedex
Certified Professional Expertise
Product Overview
Shireen’s 2.4GHz 1 Watt POE amplifier module is designed for seamless integration into existing wireless equipment requiring RF amplification and Power over Ethernet support. Featuring 802.3af compliant circuitry with support for up to 60V DC POE, this modular amplifier is optimized for installation inside existing radio enclosures. Flexible power options, compact design, and reliable RF performance make it ideal for OEM, embedded wireless, and networking applications.
Key Features
Amplification
Provides 1 Watt RF output power for 2.4 GHz wireless systems
POE Support
Integrated IEEE 802.3af compliant Power over Ethernet circuitry
High Voltage Compatibility
Supports POE input voltages up to 60V DC
Integration
Designed as an add-on amplifier module for existing 2.4 GHz radio equipment
Modular Design
Available in compact module form for installation inside existing radio enclosures
Power Flexibility
Can be powered through POE, DC jack, or direct wire connection to the PCB
Configurable Gain
Factory-selectable transmit gain option up to 22 dB
Industrial Grade
Wide operating temperature range from -40°C to +70°C
Status Monitoring
Built-in LED indicators for receive and transmit operation
Wireless Compatibility
Ideal for wireless devices already operating on Power over Ethernet infrastructure
Technical Data
| Parameter | Rating / Detail |
|---|---|
| Product Name | 2.4GHz 1 Watt POE Amplifier Module |
| Item Number | 24105 |
| Operating Range | 2400 - 2500 MHz |
| Operating Mode | TDD (Time Division Duplex) |
| Transmit Power | 30 dBm (1 Watt) |
| Transmit Gain | 16 dB (22 dB optional, factory configured) |
| Transmit Input Power | 5 dBm min, 18 dBm max |
| Receive Gain | 10 dB |
| Noise Figure | 3.5 dB |
| LED Indicators | Red for Receive (Default Mode), Green for Transmit |
| Power Consumption | 45 mA Rx, 700 mA Tx @ 12 VDC |
| Operating Temperature | -40°C to +70°C |
| Dimensions | 2.6 x 4.7 inches (with SMA connectors) |
| Weight | 5.0 oz (with aluminum mounting plate) |
| RF Connectors | SMA Female |
| DC Power | DC Jack: 12 VDC Max POE Input: 12V - 60V DC |
| POE Standard | IEEE 802.3af Compliant |
