Product Overview

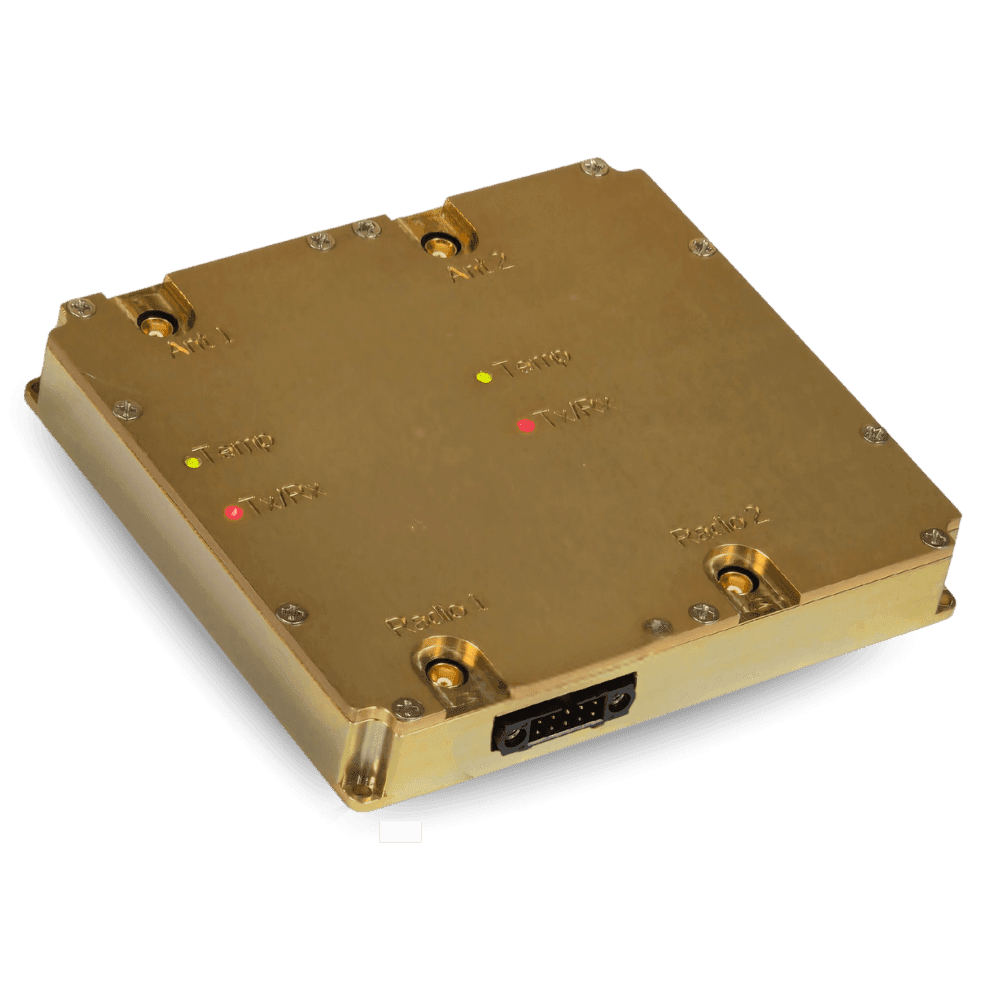

Shireen’s 1625~2300MHz MIMO bi-directional amplifier is engineered for high-performance wireless systems requiring compact size, fast switching, and high RF output. Delivering 40 Watts output per port with automatic TX signal detection and MIMO architecture, this amplifier is designed for SDR, MANET, TSM waveforms, tactical communications, UAV platforms, and embedded RF applications. With integrated temperature monitoring, low noise performance, and rapid switching technology, it supports demanding mobile and fixed deployments.
Key Features
Auto TX Detection
Auto TX signal detection requires no radio interface connection
Wideband Coverage
Covers 1625 MHz to 2300 MHz for flexible deployment
High Power MIMO
40 Watt per port MIMO bi-directional amplification
High-Speed Switching
Equipped with high-speed switching circuit at <1 µs for use with high-speed radios
Waveform Compatibility
Compatibility with all modern and emerging MANET and TSM waveforms
Gain Flexibility
Standard 26 dB transmit gain with 20 dB optional configuration available
Low Noise Figure
<2.5 dB noise figure for sensitive receive performance
Visual Status
TX/RX indication LED plus temperature status LED indication
Manual Control Option
Manual TX control optional via 5V or 3V TTL
Temperature Monitoring
Available temperature sensor readings with LED indication (Green <70°C, Red >70°C)
SWaP Optimized
Compact 3.3" x 3.7" x 0.6" footprint weighing only 190g
Flexible Connectivity
10 Pin M80-Header connector with optional fly lead for easy integration
Industrial Temperature
Operates from -40°C to +70°C for demanding environments
Robust Mounting
Base plate with four corner flanges and holes for secure mounting
Technical Data
| Parameter | Rating / Detail |
|---|---|
| Product Name | 1625~2300 MHz SWaP MIMO Bi-directional Amplifier |
| Operating Range | 1625~2300 MHz |
| Operating Mode | TDD, Time Division Duplex |
| Tx Peak Power | 40W (each port) |
| Transmit Gain | 26 (±1) dB, (20dB optional) |
| Tx Input Power | 2 dBm min (±2); 23 dBm max |
| Rx Gain | 14 ± 1 dB |
| Noise Figure | <2.5 dB |
| T/R Switching | Auto switching at <1 µs |
| LED Indicators | Red for Rx (default mode), Green for Tx. Temperature <70°C LED Green, Temperature >70°C LED Red |
| DC Power | 28V 7A Max |
| DC Power Range | 24-30 VDC |
| Power Consumption | With 28V, 60mA Rx, 6A @ 30W Tx CW |
| Operating Temperature | -40 °C to +70 °C |
| Temperature Sensor | Indicator LED Green <70°C, Red >70°C |
| Dimensions | 3.3" x 3.7" x 0.6" |
| RF Connector - Radio Input | MCX-F |
| RF Connector - ANT Output | MCX-F |
| Power Connector | 10 Pin M80-Header connector or Fly lead Optional |
| Weight | 190 g |
| Mounting | Base plate has four corner flanges with holes for mounting screws |
