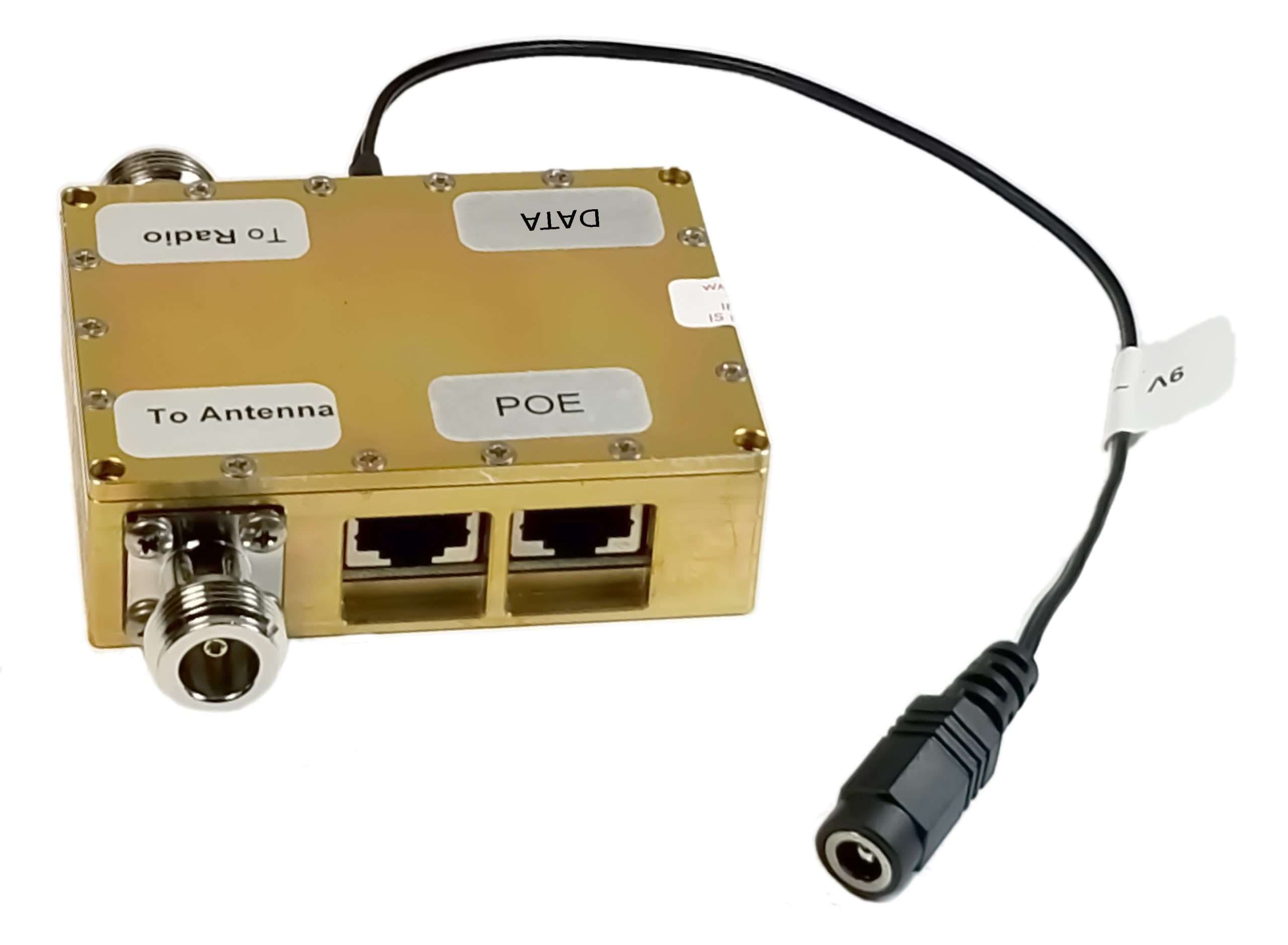

Shireen 2.4GHz Variable Voltage Regulated Bi-directional Amplifier 1~2 Watt Output
Estimated shipping time across UK: 1-2 business days via DPD , DHL , Parcel Force, & Fedex
Certified Professional Expertise
Product Overview
Shireen’s 2.4GHz variable voltage regulated bi-directional amplifier provides efficient RF amplification for ISM band wireless applications with support for 9V to 60V DC input. Equipped with integrated low noise amplification, POE capability, and fast switching performance, this amplifier is designed for modern wireless networking, industrial systems, and rugged deployments.
Key Features
Amplification
Bi-directional RF amplifier family providing 1 to 2 Watt output power depending on operating conditions
Frequency Options
Available for 900MHz, 2.4GHz, and 5.8GHz ISM frequency bands
Wide Input Voltage
Operates from unregulated DC power sources ranging from 9V to 60V DC
Low Noise Amplifier
Integrated LNA with 18 to 20 dB receive gain improves receiver sensitivity
Receive Filtering
Built-in band-pass filtering helps reduce out-of-band interference
Fast Switching
High-speed transmit/receive switching compatible with modern wireless protocols
POE Support
Dual Power over Ethernet ports support POE deployments
Efficiency
Designed for low power consumption and high RF efficiency
Enclosure
Rugged CNC machined aluminum housing
Industrial Grade
Wide operating temperature range from -40°C to +70°C
Warranty
Includes 2-year manufacturer warranty
Availability
Offered to military, overseas, and authorized customers
Technical Data
| Parameter | Rating / Detail |
|---|---|
| Product Name | 2.4GHz Variable Voltage Regulated Amplifier |
| Item Number | 24-500 |
| Operating Range | 2400 - 2500 MHz |
| Operating Mode | TDD |
| Peak Transmit Power | 30 dBm |
| Transmit Gain | 20 dB |
| Transmit Input Power | 3 dBm min, 15 dBm max |
| Receive Gain | 20 dB |
| Noise Figure | < 3 dB |
| Power Consumption Rx @ 9VDC | 30 mA |
| Power Consumption Tx @ 9VDC | 800 mA |
| Operating Temperature | -40°C to +70°C |
| Dimensions | 3.1 x 2.3 x 0.95 inches |
| Enclosure | CNC Machined Aluminum |
| Connectors | Type N Female |
| Weight | 7.2 oz |
