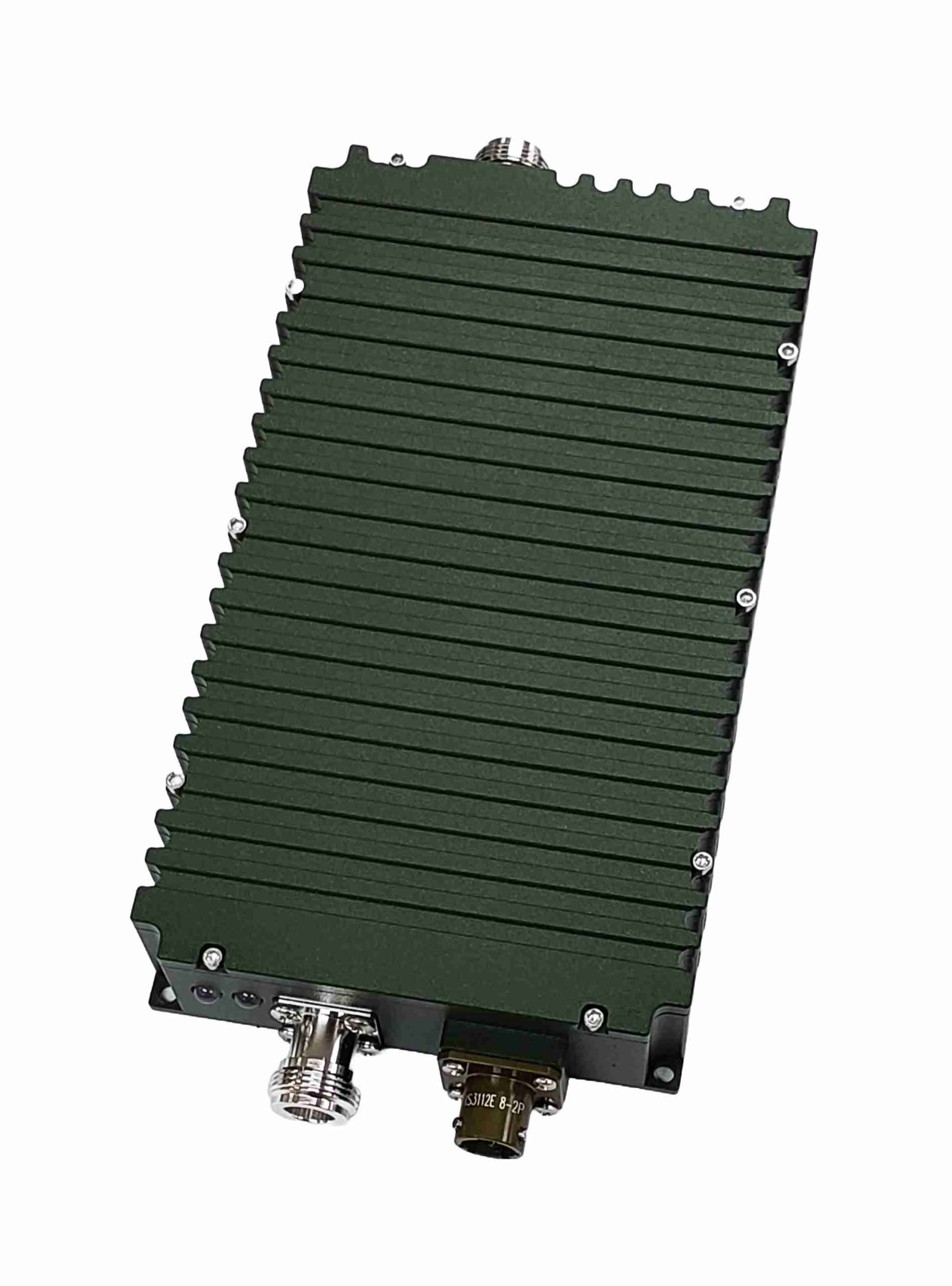

Shireen 30-512 MHz Bi-directional Amplifier
Brand: ShireenModel: 70-512 In Stock
100% GenuineOriginal, factory-validated
Standard Manufacturer WarrantyEnhanced, business-grade
Years of ExpertiseEstablished, delivery-centric
Condition
1
Estimated shipping time across UK: 1-2 business days via DPD , DHL , Parcel Force, & Fedex
Certified Professional Expertise
Product Overview
Covering the entire band from 30 MHz to 512 MHz via single port. Features temperature sensor readings, over temperature protection with auto shut off over 70°C, and manual switching option via 3V TTL or 5V TTL. Covers tactical band. Available as OEM package for system integrators and developers.
Key Features
Full Tactical Band Coverage
Covers the entire band from 30 MHz to 512 MHz via single port.
Temperature Protection
Over temperature protection with auto shut off over 70°C.
Manual Switching
Manual switching option via 3V TTL or 5V TTL.
High Power Output
100 Watt output for demanding applications.
OEM Package Available
Available as OEM package for system integrators and developers.
Technical Data
| Parameter | Rating / Detail |
|---|---|
| Operating Range | 30-512 MHz |
| Operating Mode | TDD, Time Division Duplex |
| Transmit Peak Power | 50 dBm (100 Watt) |
| Transmit Gain | 14 dB (+/- 2) |
| Transmit Input Power | 0 dBm min, 34 dBm max |
| T/R Switching | Auto switching, or via Manual 3V / 5V TTL |
| Receive Gain | 20 dB (+/- 2) |
| Noise Figure | <3 dB |
| TX/RX LED Indicator | Red for Receive (Default mode); Green for Transmit |
| Temp. LED indicator | Green for temp <70 °C; Red for temp >70 °C (>158 °F, P.A. shut off) |
| Power Consumption | With 28VDC, 85mA Rx, 2.6A @ 10W CW Tx, 5.7A @ 50W CW Tx, 7.8A @ 100W CW Tx |
| Operating Temp | -40 °C (-40 °F) to +70 °C (158 °F) with appropriate heatsinking |
| Temp Sensor | Optional per customer needs |
| Dimensions | L: 6.65" (168.91 mm), W: 3.72" (94.49 mm), H: 1.2" (30.48 mm) without connectors |
| Weight | 23 Oz (~652 g) |
