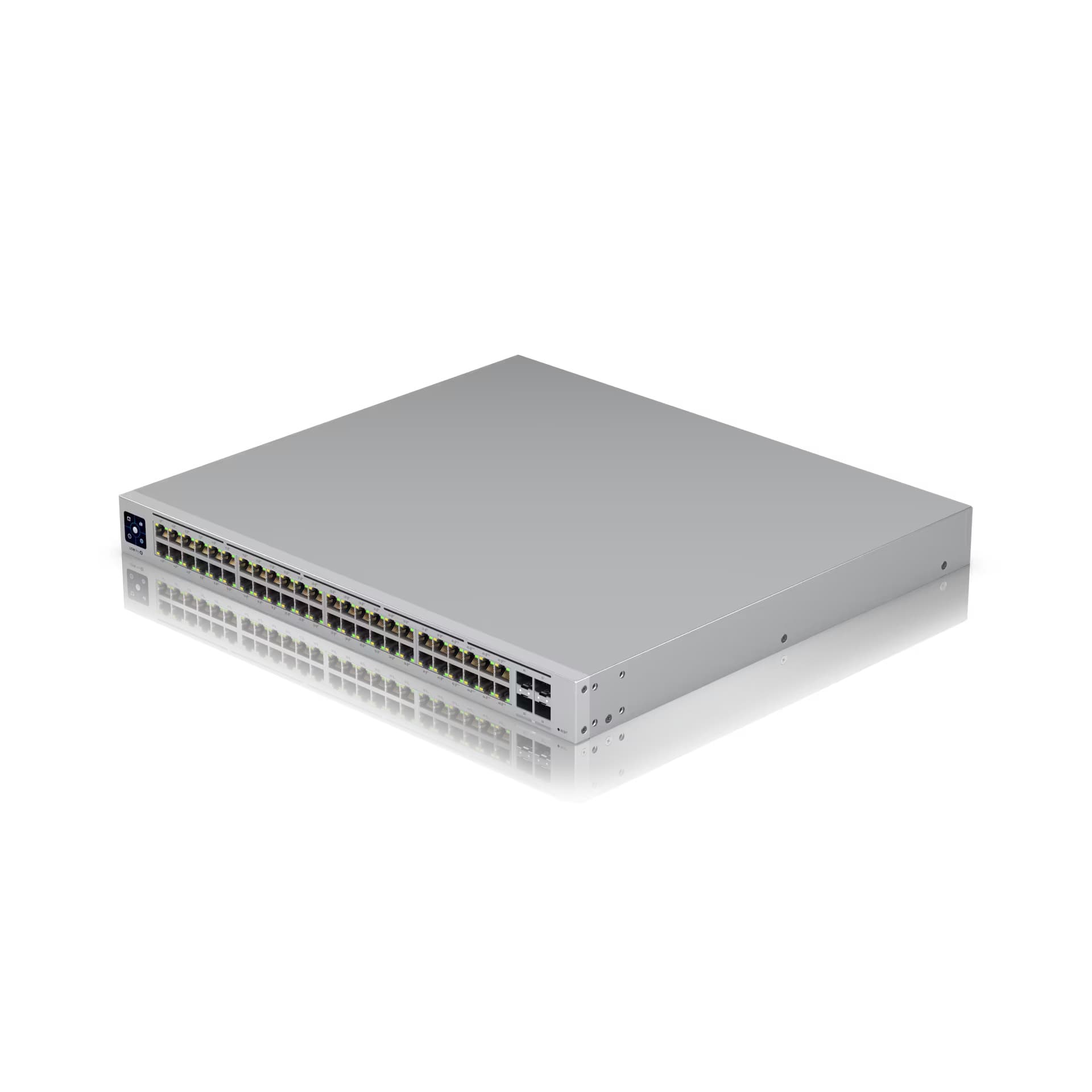

Ubiquiti UniFi Switch Pro 48 PoE Layer 3 Managed 48-Port Gigabit Switch
Estimated shipping time across UK: 1-2 business days via DPD , DHL , Parcel Force, & Fedex
Certified Professional Expertise
Product Overview
The Ubiquiti UniFi Switch Pro 48 PoE is an enterprise-grade Layer 3 managed switch designed for high-performance network deployments. Featuring 48 Gigabit RJ45 ports, including 40 PoE+ ports and 8 PoE++ ports, along with 4 high-speed 10G SFP+ uplink ports, it delivers flexible connectivity and powerful PoE capabilities for access points, IP cameras, VoIP phones, and other network devices. With a total PoE budget of 600W, advanced Layer 2 and Layer 3 switching features, static routing, inter-VLAN routing, DHCP services, and support for up to 1,000 VLANs, the switch is ideal for enterprise, campus, hospitality, education, and large business environments. The integrated 1.3-inch touchscreen display provides real-time status monitoring, while support for UniFi Network enables centralized management and visibility across the entire network infrastructure. The switch offers a 176 Gbps switching capacity, 88 Gbps non-blocking throughput, and 131 Mpps forwarding performance, ensuring reliable operation for bandwidth-intensive applications. Built in a 1U rackmount form factor with support for redundant power backup via USP RPS, the USW-Pro-48-PoE delivers scalability, resilience, and enterprise-class network performance.
Key Features
Connectivity
48 x Gigabit Ethernet RJ45 ports40 x PoE+ ports8 x PoE++ ports4 x 10G SFP+ uplink ports
PoE Features
600W total PoE budgetSupports PoE, PoE+, and PoE++ devicesUp to 64W PoE++ output per port
Layer 3 Features
Static routingInter-VLAN routingDHCP serverDHCP relay
Layer 2 Features
LACP link aggregationSTP and RSTPQoS (DSCP)IGMP snooping802.1X authenticationPort isolation and mirroringVoice VLAN support
Management
UniFi Network integration1.3-inch touchscreen status displayCentralized monitoring and configuration
Enterprise Design
1U rackmount chassisUSP RPS power redundancy supportEnterprise-grade switching performanceSuitable for campus and business deployments
Technical Data
| Parameter | Rating / Detail |
|---|---|
| Product | Ubiquiti UniFi Switch Pro 48 PoE |
| Model | USW-Pro-48-POE |
| Switch Type | Managed Switch |
| Layer | Layer 2 / Layer 3 |
| Ports Total | 48 x Gigabit RJ45 |
| PoE Ports | 40 x PoE+ |
| PoE PP Ports | 8 x PoE++ |
| SFP Plus Ports | 4 x 10G SFP+ |
| PoE Budget | 600W |
| Switching Capacity | 176 Gbps |
| Non Blocking Throughput | 88 Gbps |
| Forwarding Rate | 131 Mpps |
| Supported VLANs | 1000 |
| MAC Address Table | 16000 Entries |
| IPv4 Static Routes | 256 |
| Packet Buffer | 4 MB |
| Power Input | 100-240V AC, 50/60Hz |
| Power Supply | Internal AC/DC 660W |
| Redundancy | USP RPS DC Backup Support |
| Max Power Consumption | 660W Including PoE |
| Display | 1.3-inch Touchscreen LCM |
| Management | UniFi Network Controller |
| Rackmount | 1U |
| Dimensions | 442 x 400 x 44 mm |
| Weight | 6.2 kg |
| Operating Temperature | -5°C to 40°C |
| Humidity | 10% to 90% Non-Condensing |
| Certifications | CE, FCC, IC, Anatel |
| NDAA Compliant | Yes |
