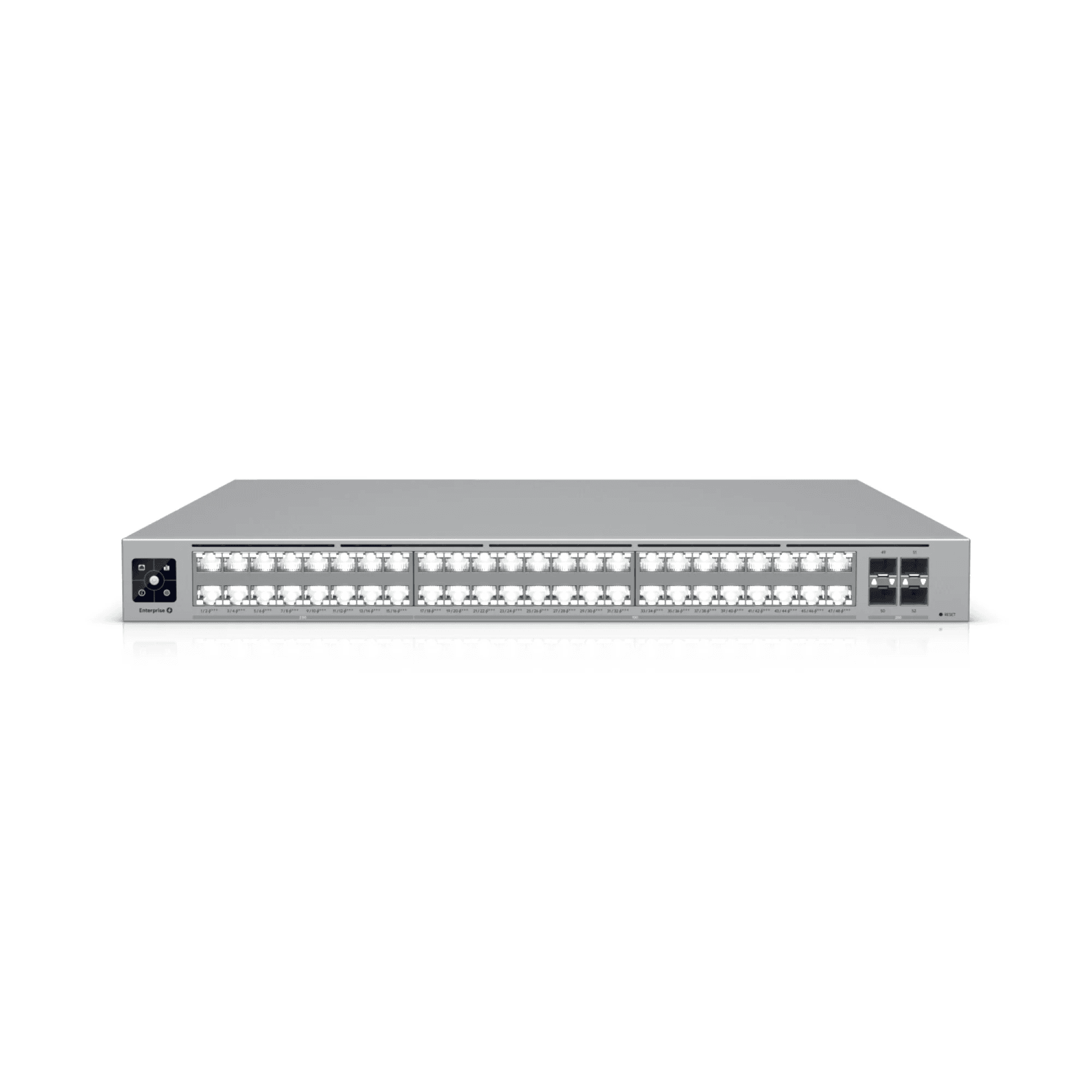

Ubiquiti ECS-48-PoE Enterprise Campus 48-Port PoE Layer 3 Switch
Estimated shipping time across UK: 1-2 business days via DPD , DHL , Parcel Force, & Fedex
Certified Professional Expertise
Product Overview
The Ubiquiti ECS-48-PoE Enterprise Campus Switch is a high-performance Layer 3 managed switch designed for enterprise-grade campus and data center deployments. It delivers exceptional throughput with support for high-density multi-gigabit connectivity, making it ideal for modern high-demand network infrastructures. Equipped with a mix of (16) 2.5 GbE PoE+++, (32) 10 GbE PoE+++, and (4) 25G SFP28 uplink ports, this switch provides flexible and scalable connectivity for access, aggregation, and backbone layers. Its advanced PoE capability supports up to 2150W total power output, enabling seamless operation of high-power network devices. Built for reliability, the ECS-48-PoE features redundant hot-swappable power supplies and fan modules, ensuring continuous uptime in critical environments. With advanced Layer 2 and Layer 3 capabilities including VLAN management, DHCP features, IGMP snooping, and link aggregation, it delivers secure and efficient enterprise networking performance.
Key Features
Performance
460 Gbps non-blocking throughput920 Gbps switching capacity684 Mpps forwarding rate for high-speed traffic handling
Connectivity
48 total RJ-45 ports with mixed multi-gig support16 x 2.5 GbE PoE+++ ports32 x 10 GbE PoE+++ ports4 x 25G SFP28 uplink ports
Power Features
Up to 2150W total PoE budgetSupports PoE+, PoE++, and PoE+++ (up to 90W per port)Dual redundant power supplies for high availability
Layer 3 Features
Advanced L2/L3 managed switchingSupport for up to 1000 VLANs256,000 IPv4 static routesLink aggregation and rate limiting support
Reliability Design
Hot-swappable redundant power modulesHot-swappable fan modules (3+1 redundancy)Enterprise-grade 1U rackmount chassisHigh-density campus switching design
Technical Data
| Parameter | Rating / Detail |
|---|---|
| Product | Ubiquiti ECS-48-PoE Enterprise Campus Switch (ECS-48-PoE) |
| Switch Type | Managed Switch |
| Layer | L2 / L3 |
| Ports Total | 48 RJ-45 Ports |
| 2.5G Ports | 16 x 2.5 GbE PoE+++ |
| 10G Ports | 32 x 10 GbE PoE+++ |
| SFP28 Uplinks | 4 x 25G SFP28 |
| PoE Type | PoE+, PoE++ (PoE+++ up to 90W per port) |
| Total PoE Budget | 2150W |
| Switching Capacity | 920 Gbps |
| Throughput | 460 Gbps |
| Forwarding Rate | 684 Mpps |
| MAC Address Table | 128,000 Entries |
| VLAN Support | Up to 1000 VLANs |
| Static Routes | 256,000 IPv4 Routes |
| Power Supply | 2x Redundant PSU Included |
| Power Input | AC 100–240V |
| Power Consumption | Up to 2400W |
| Form Factor | 1U Rackmount |
| Dimensions | 442 x 496 x 43.7 mm |
| Weight | 9.46 kg |
| Operating Temperature | -5°C to 40°C |
Certifications
